Yueming Liu

I installed the necessary library for the ICM 20948 Inertial Measurement Unit (IMU), connected the IMU to the Artemis board with a QWIIC connector as shown below, and ran the first example in the ICM-20948 Library which prints the IMU measurements. The AD0_VAL is the value of the last bit of the I2C address. Since my ADR jumper is open, the AD0_VAL should be default to 1.

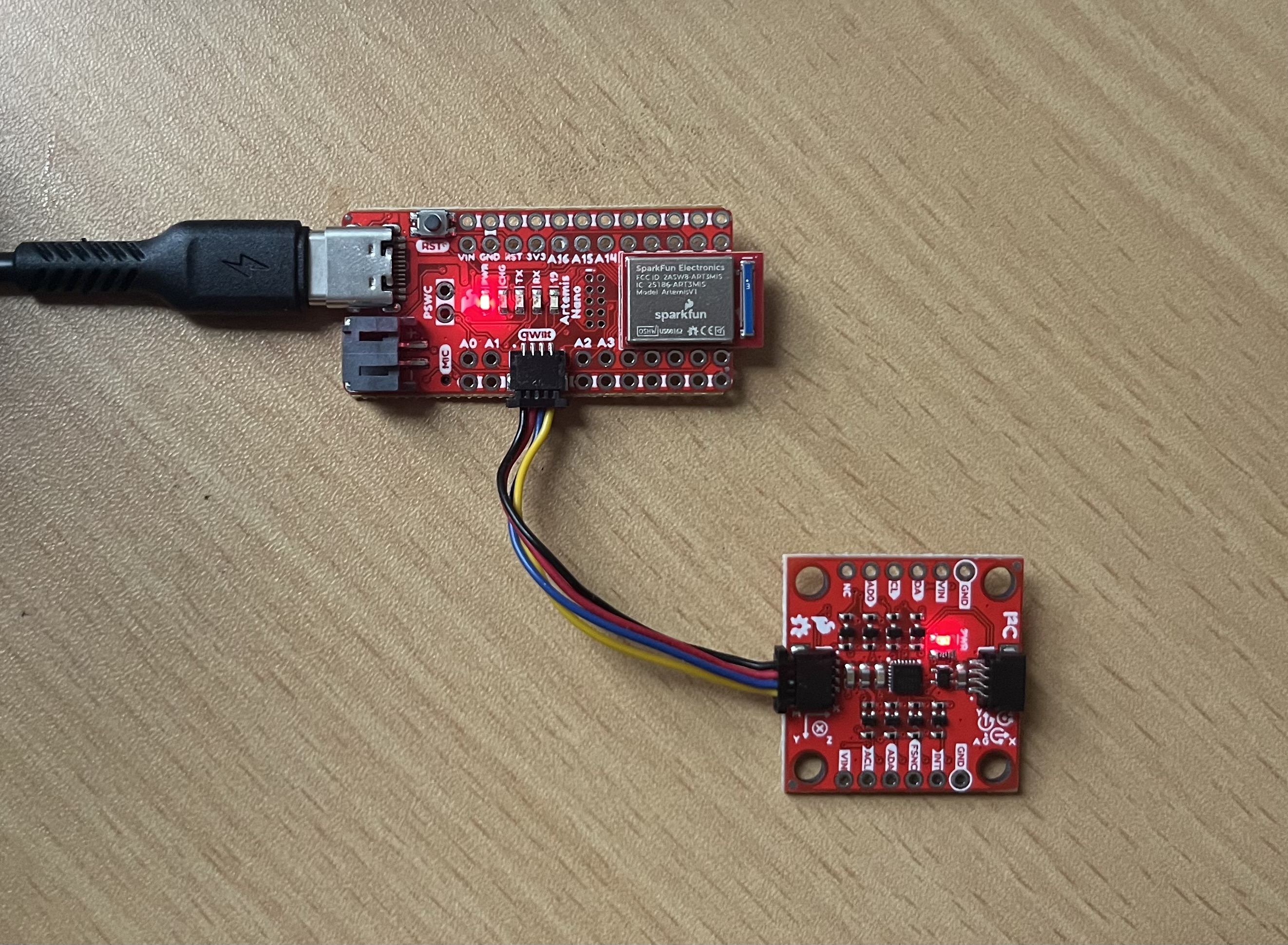

I included start-up blink in the example code as shown in the video. The accelerometer readings do not change significantly when I rotate the sensor around the z-axis slowly; It changes when I accelerate, flip, or rotate the sensor around a different axis. The Gyroscope readings do not change significantly when I linearly accelerate or slowly rotate the sensor. It changes when I flip or rotate the sensor quickly.

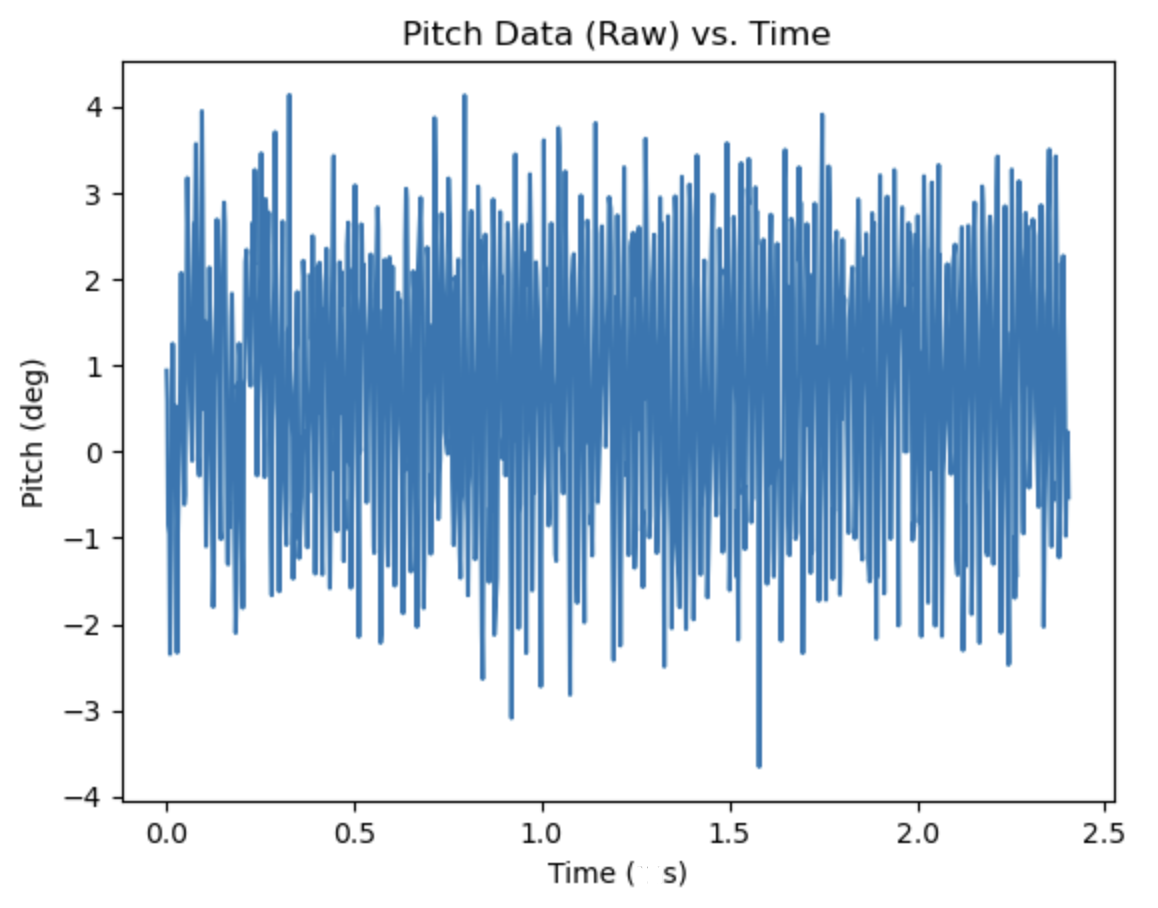

I used the equations from class to convert the accelerometer data into pitch and roll.

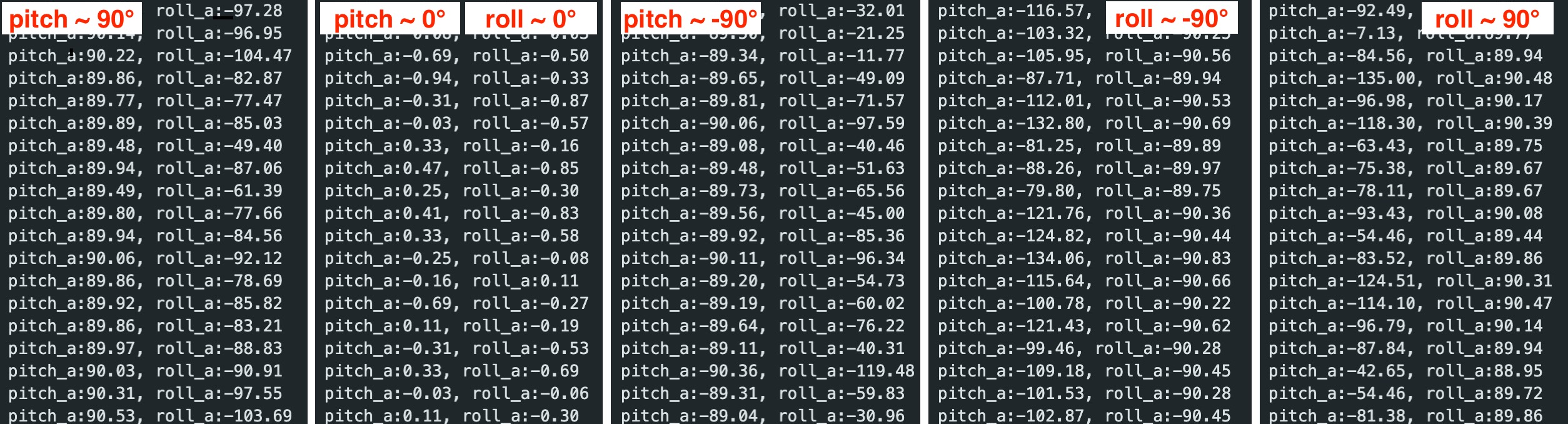

The picture below shows the output from the Serial Monitor at {-90, 0, 90} degrees pitch and roll. The accelerometer is fairly accurate, with error bound within +/-0.5 degree. Therefore I do not think a two-point calibration is needed for this sensor:

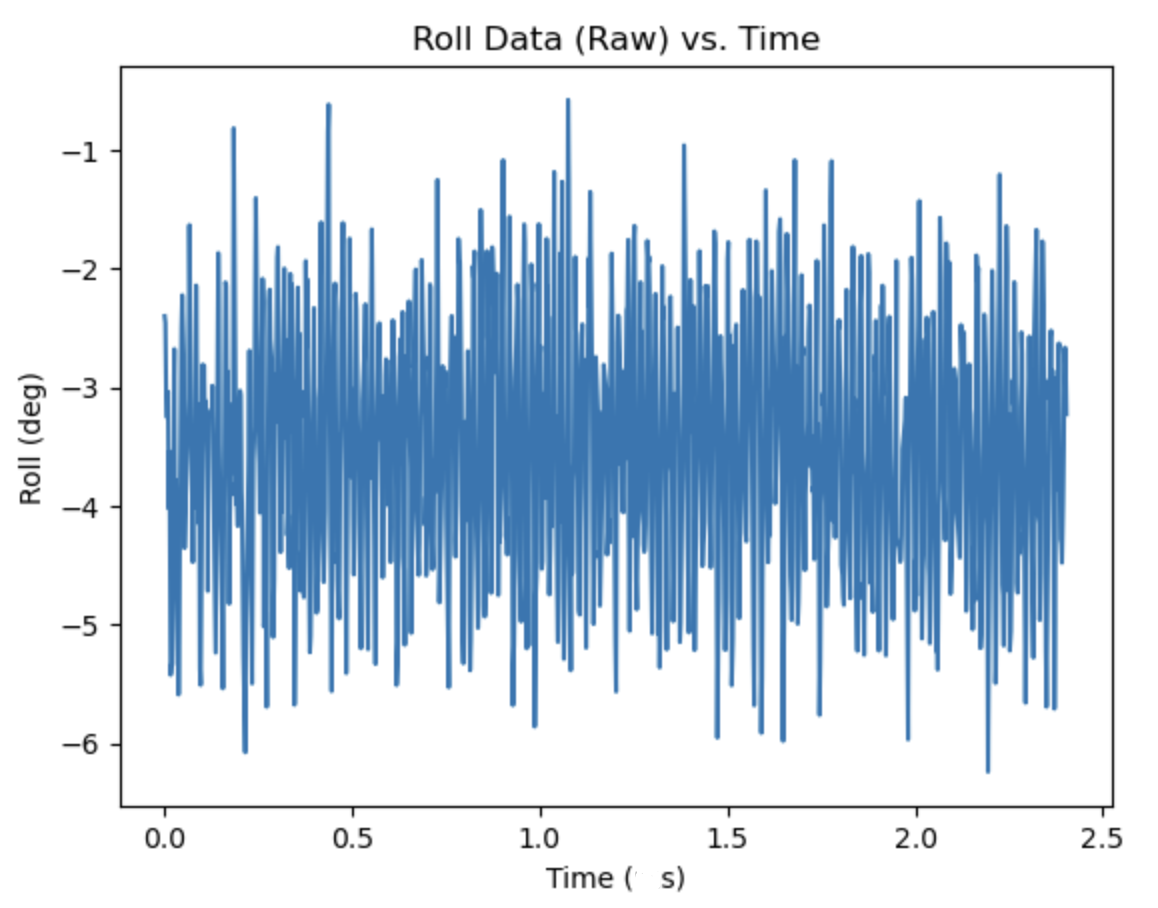

Once the IMU sensors is mounted on the car, it will receive a lot of noise from the environement. In order to filter out some of the noises, we need to first apply Fourier Transform to the raw data, and from the Fourier Transform we can find a cutoff frequency that separate the noise from the useful information. We can then implement a low pass filter (LPF) with this cutoff frequency to clean up the raw data. The following plots show the raw data from some test runs and the Fourier Transforms of the pitch and roll readings from the accelerometer:

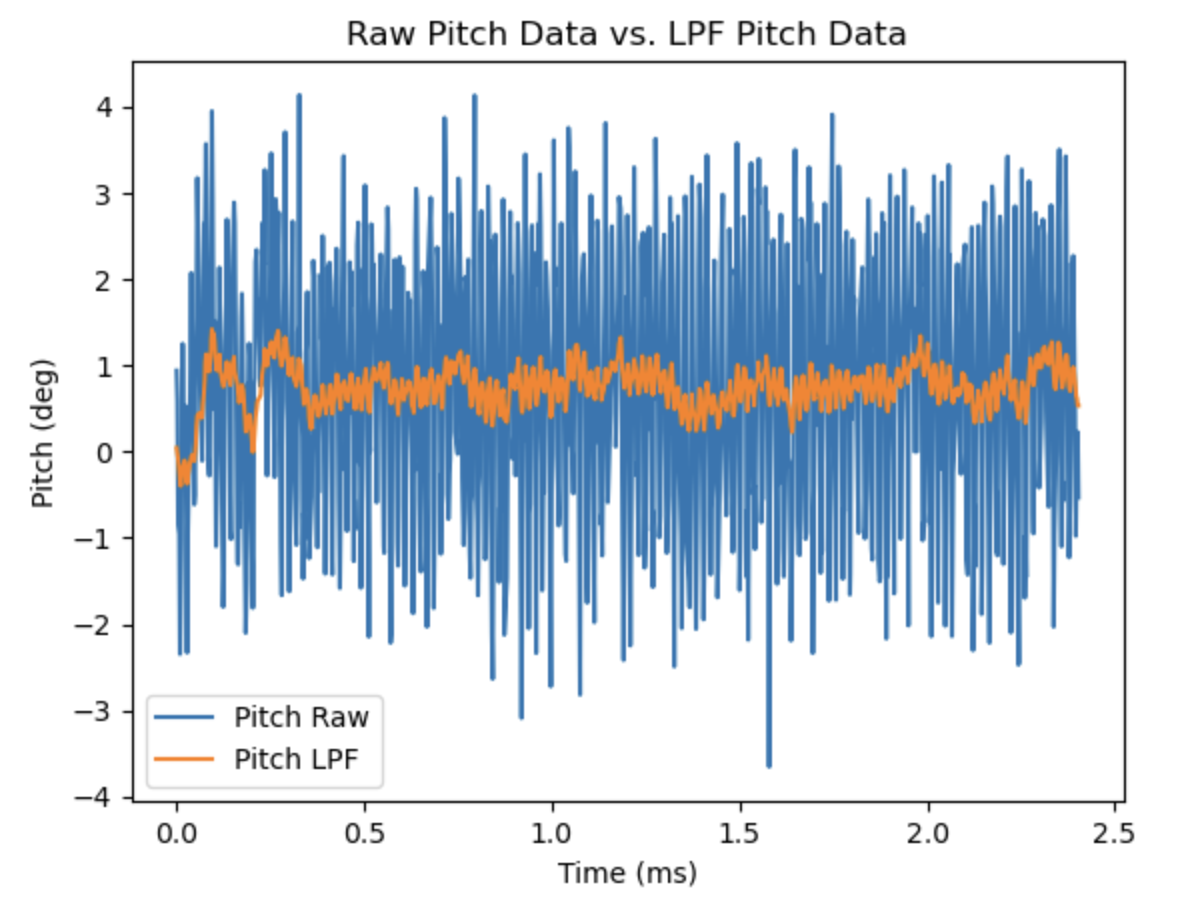

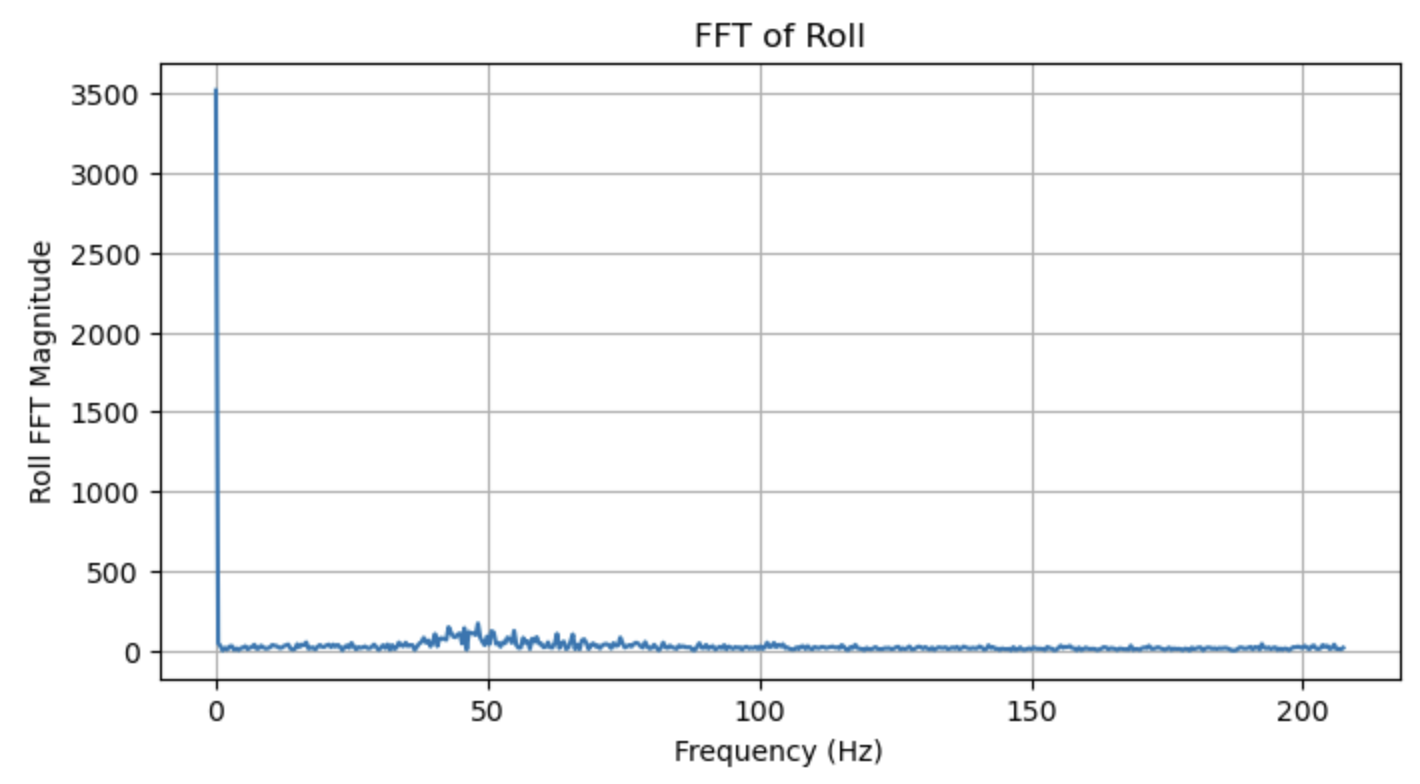

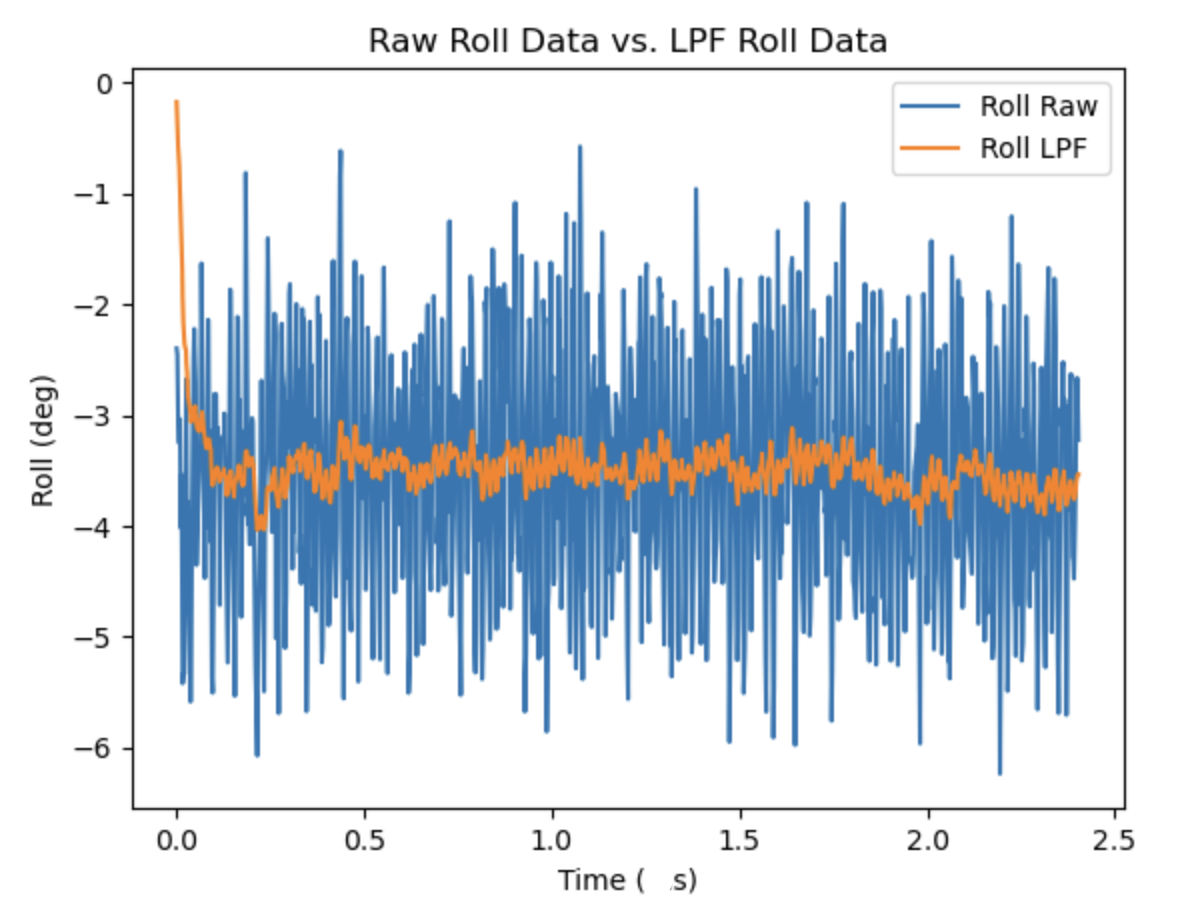

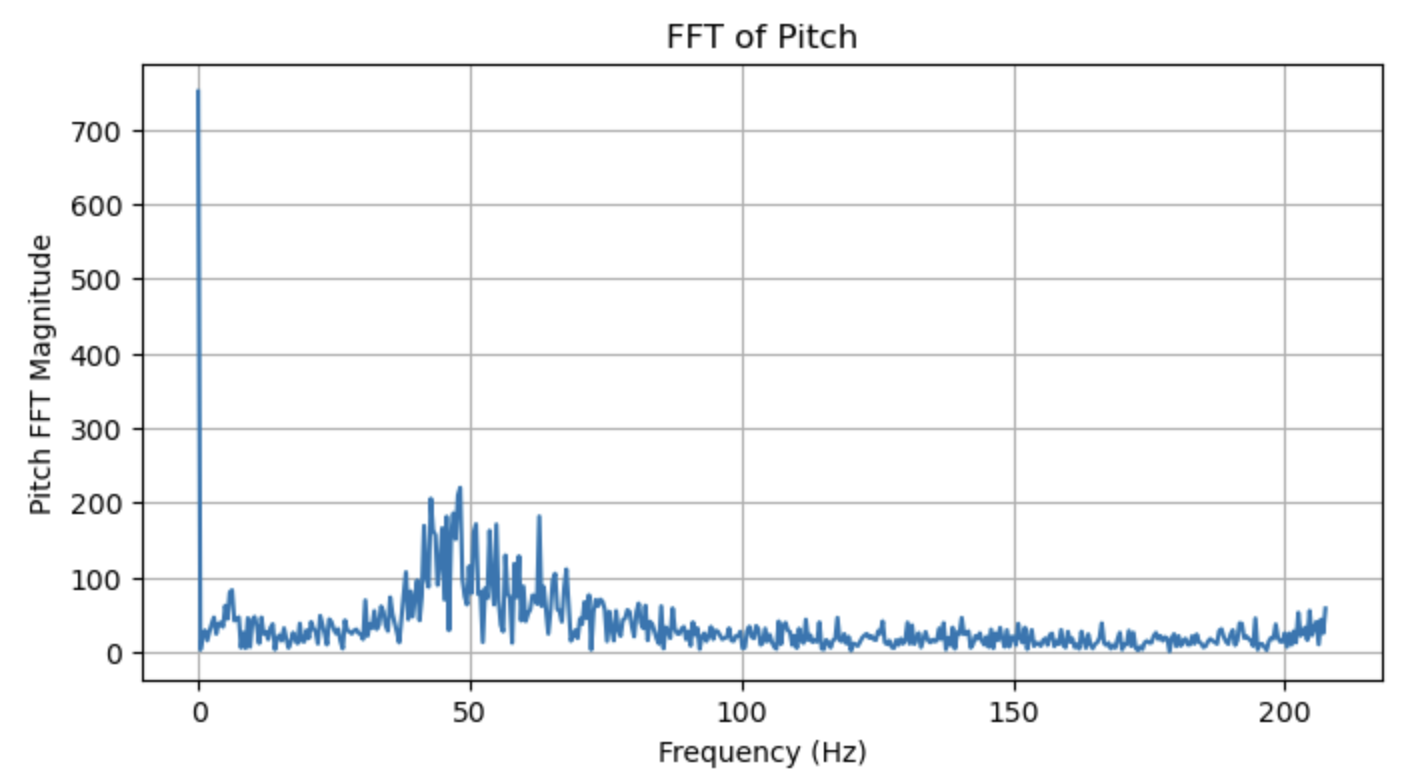

As shown in the FFT plots above, there is a peak of noise at around 50Hz for both pitch and roll data, and 10Hz appears to be a good cut-off frequency in this case, although this number is subject to change after the sensor is mounted on the robot. The implementation of the low pass filter and the results are shown below. After applying the filter, the data preserves the overall trend but is much less noisy:

I used the equations from class to convert the gyroscope data into pitch, roll, and yaw by estimating the angles using angle derivatives from the myICM.gyrX(), myICM.gyrY(), and myICM.gyrZ() output:

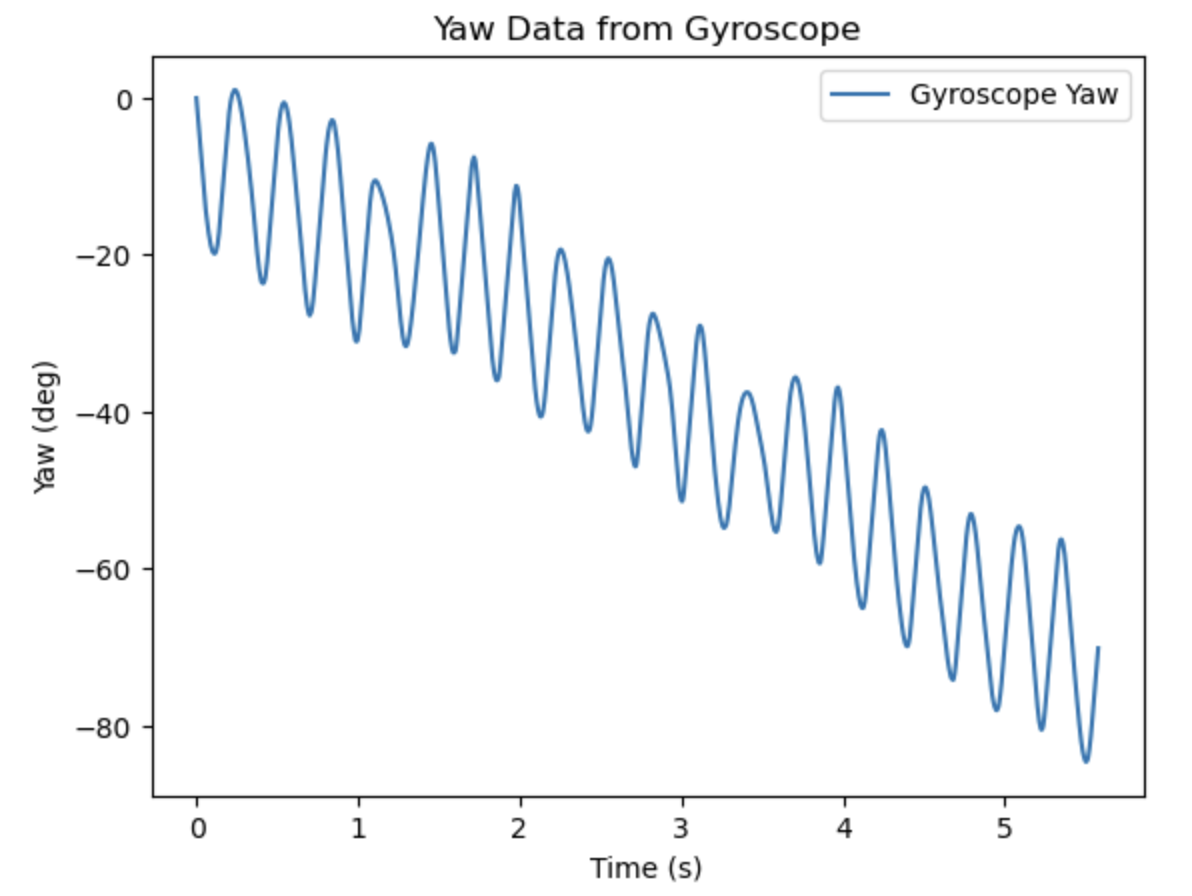

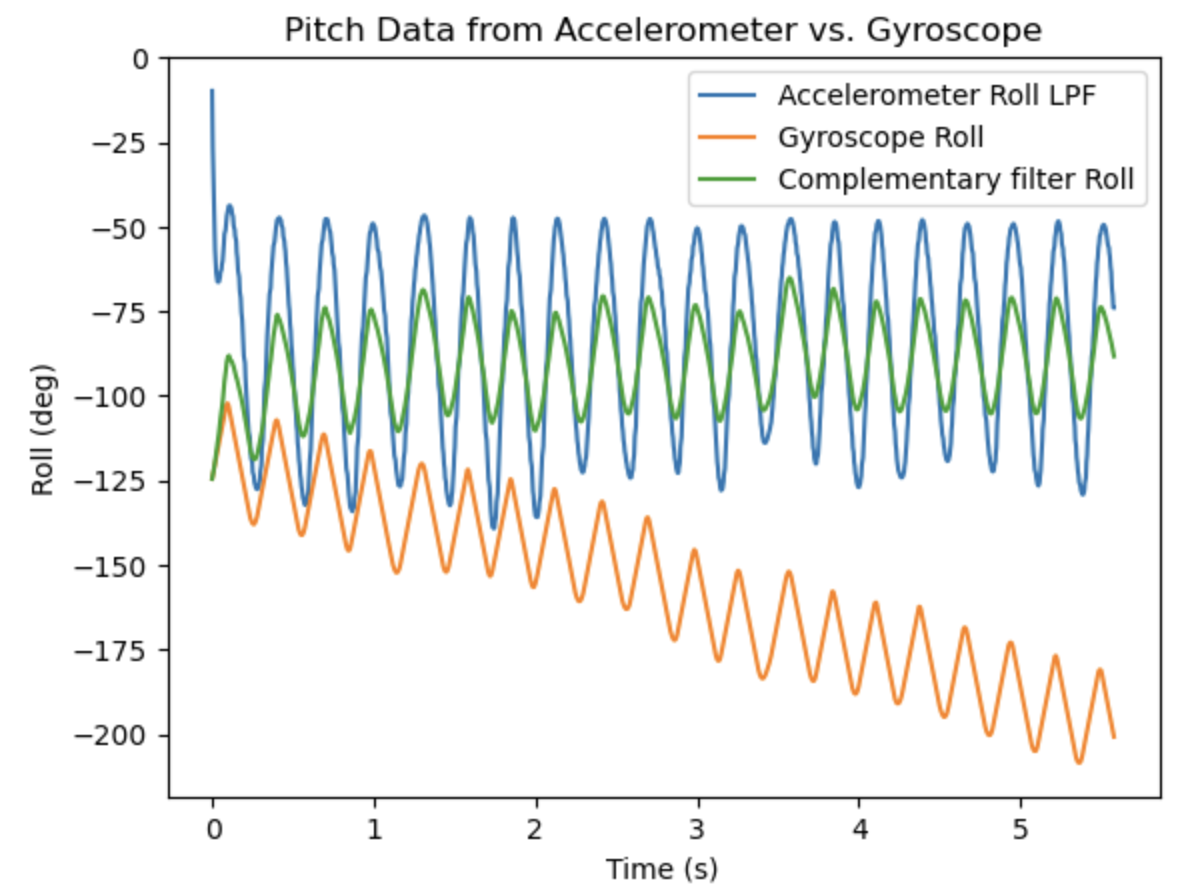

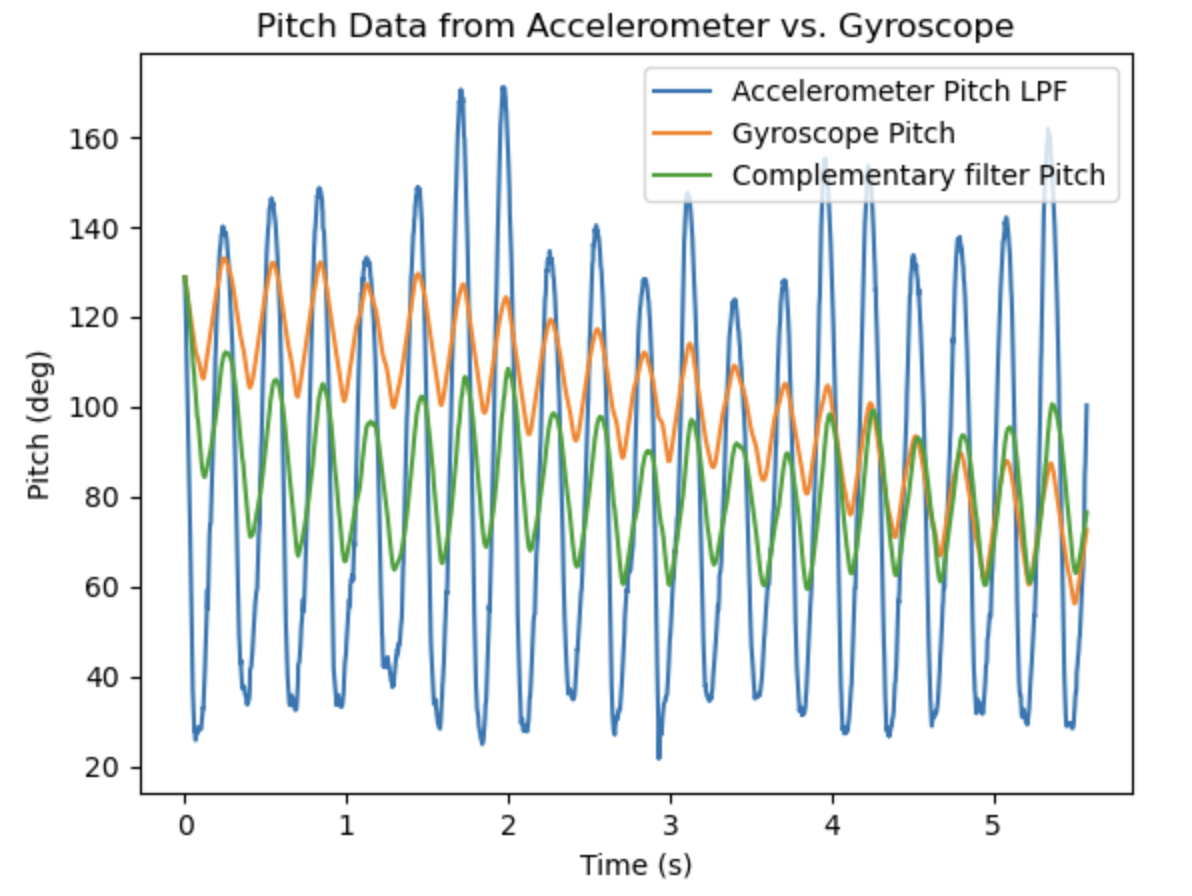

As shown below, for both the pitch and roll data, the overall trend from the accelerometer and the gyroscope match closely. However, data from gyroscope appears to have a increasing drift, despite being more accurate at the beginning and less noisy overall. In order to account for the drift in the gyroscope and the noise and inaccuracy in the accelerometer, I applied a complementary filter with alpha = 0.01:

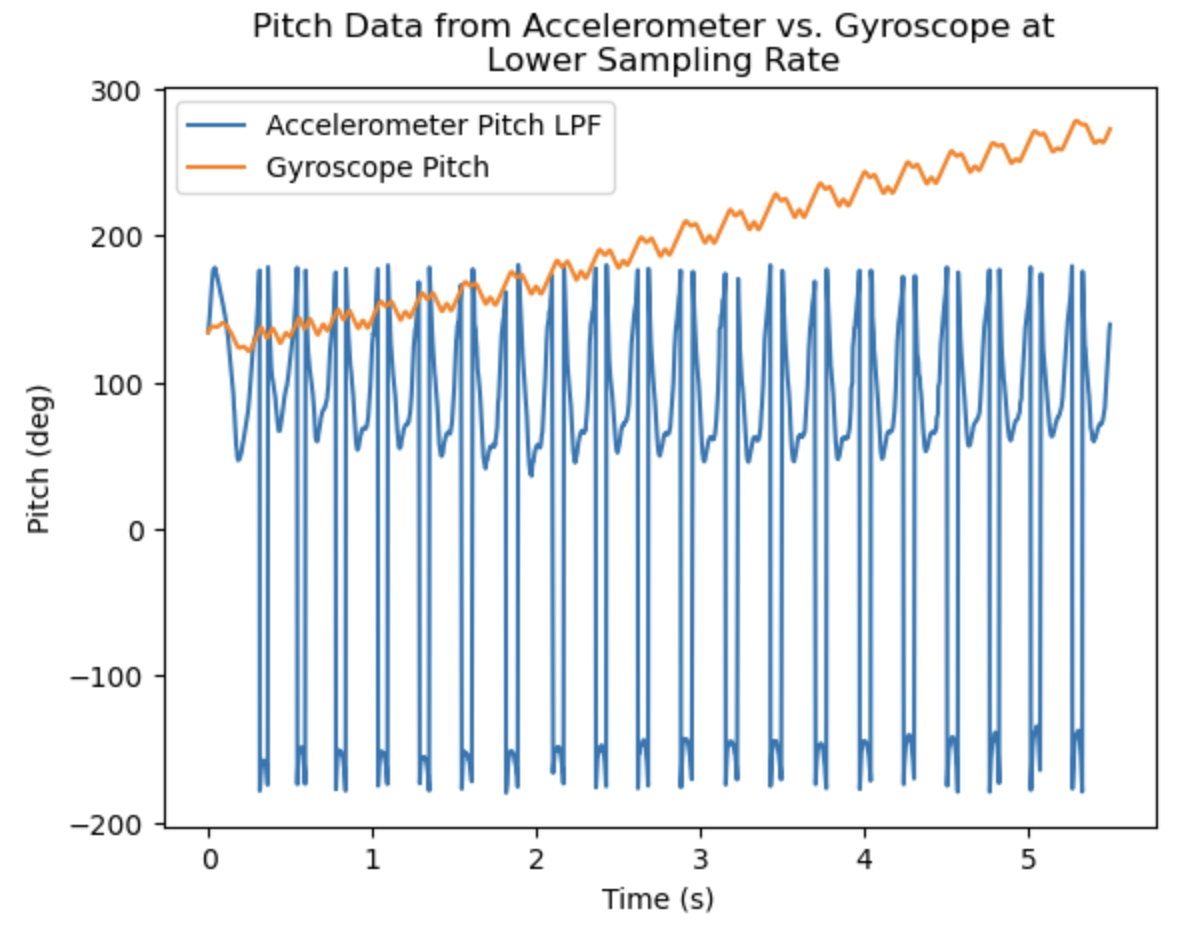

For the plot below, I lowered the sampling frequency, and the angle estimation appears to be a lot worse eventhough the overall trend still match up between the accelerometer and the gyroscope.

I sped up the execution of my loop for the Artemis board by removing all the delays and Serial print statements.

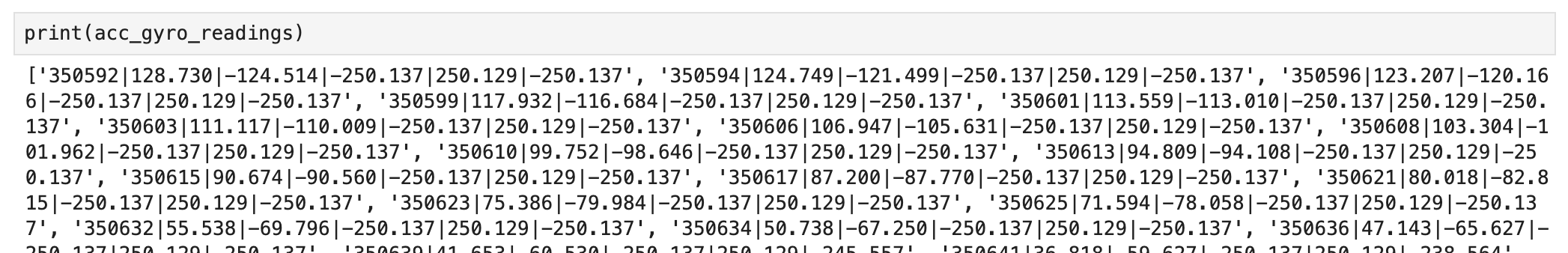

As shown below, the sampled values are stored in the form of 'time_stamp | pitch_a | roll_a | pitch_g_raw | roll_g_raw | yaw_g_raw', and I was able to collect 1000 data points in 5.567s, so the sampling rate is 179 data points/second. The main loop on my Artemis board does not run faster than the IMU produces new values.

It worked for me to have separate arrays for storing accelerometer and gyroscope data as sometimes we need to access them separately for calculations. However, I did combine them together with the timestamp into one string for data transmission. This allows me to send over information of different data types (int and float) at once, reducing the overhead for data transmission.

The Artemis board has 384 kB of RAM, and each datapoint (1x int and 5x float) is 24 Bytes, meaning that it can take at most 16,000 data points. With a rate of 179 data points/second, this memory corresponds to 89 seconds of IMU data.

All plots in Task 3. Gyroscope (the second above) demonstrates that my board can capture at least 5s worth of IMU data and send it over Bluetooth to the computer.

Here is the car doing a backflip! The easiest way to do a backflip is to reverse direction rapidly or have the robot bump into an obstacle.

It is important to use the correct filter for different data, and be mindful about how the data is stored and transmitted as we incorporate more sensors.

According to the datasheet, the ToF sensor uses the I2C protocal with the default address 0x52. Therefore, in order to use two ToF sensors at the same time, we need to change the address of one of the sensors. We can do that by connecting the XSHUT pin of one ToF sensor to a GPIO pin, and after each reboot:

1. Turn off sensor 1 by setting XSHUT low.
2. Now that we are able to uniquely address sensor 2, change its address.
3. Turn on sensor 1 by setting XSHUT high.

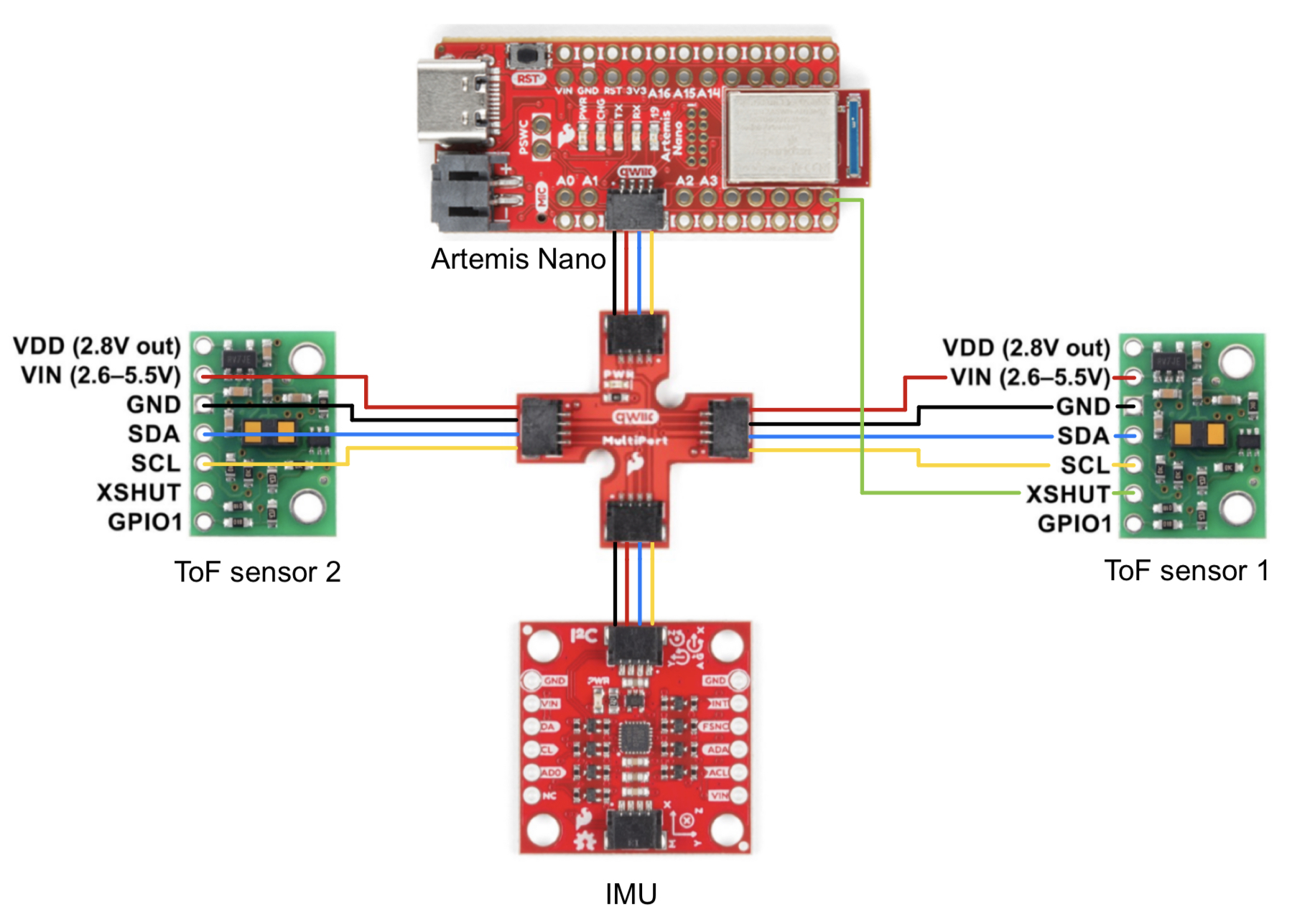

Thus we are able to address two sensors simutaneously. A wiring diagram is shown below, note that here the XSHUT of sensor 1 is connected to GPIO 8.

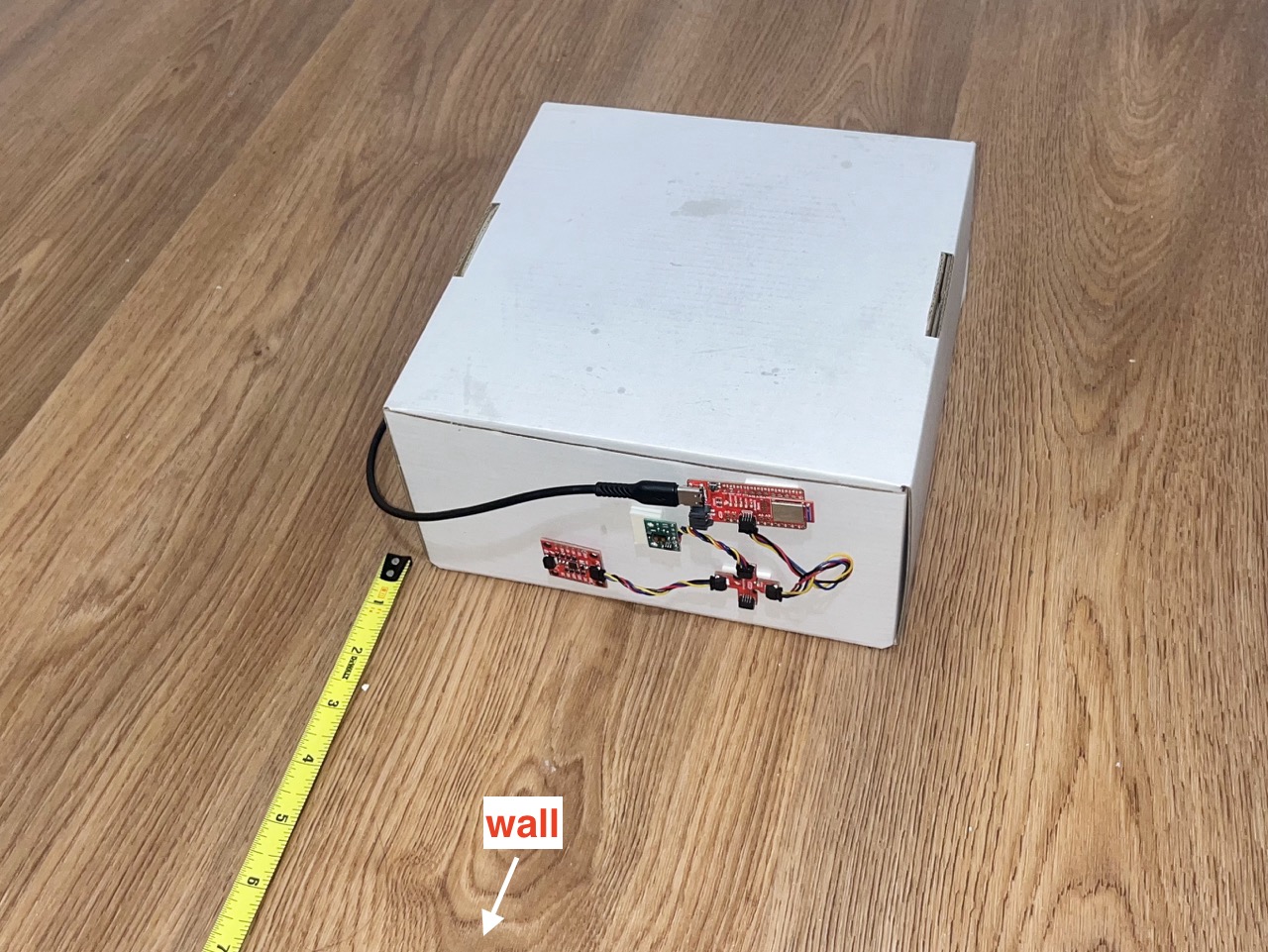

In terms of sensor placements, I'm planning to put one sensor at the front of the car to detect obstacles in its path, and another on the side to facilitate tasks like wall-following or map-reconstruction. With this setup, I won't be able to detect obstacles on the other side or at the back.

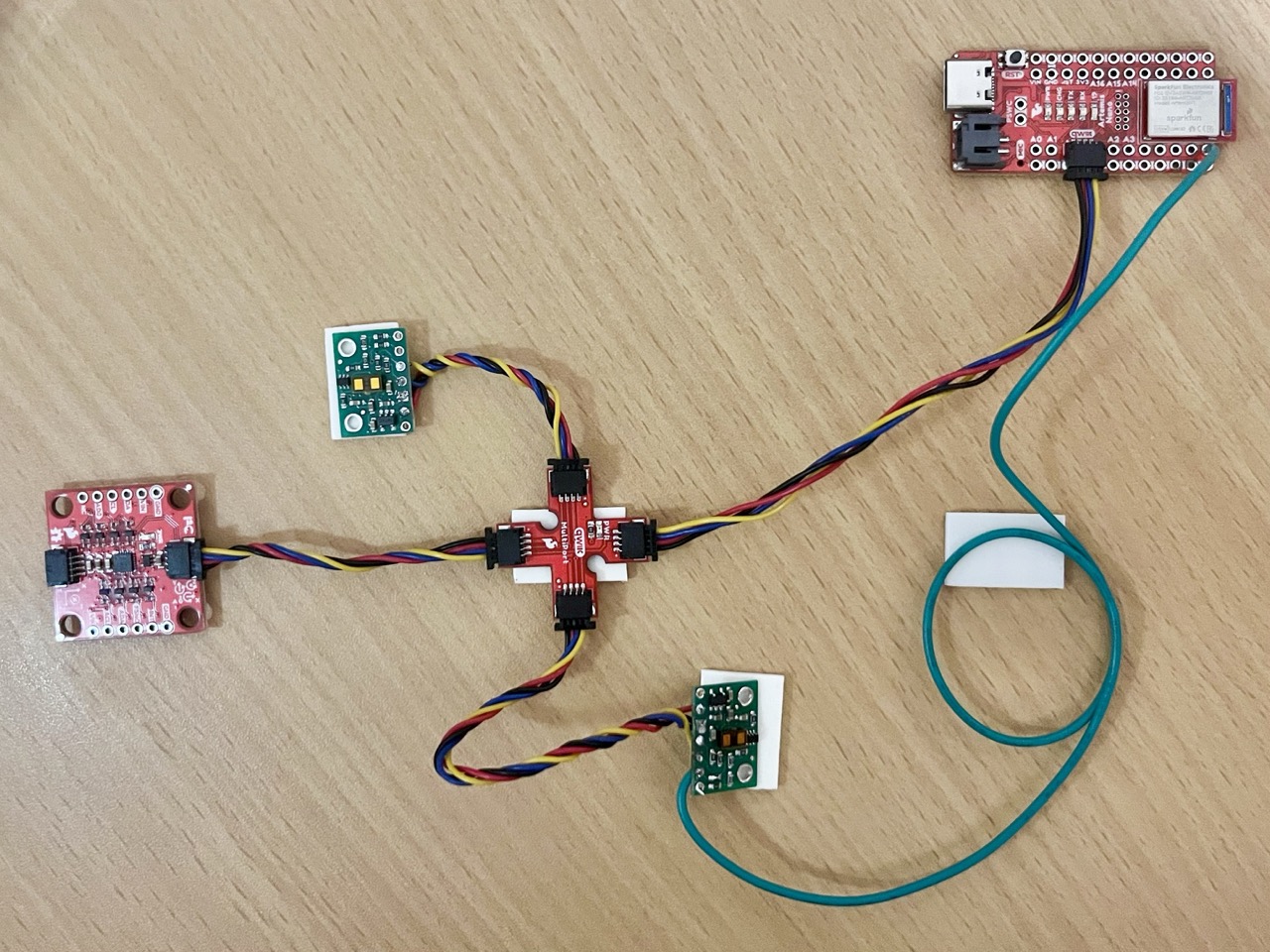

I soldered the JST connectors to the battery, and the QWIIC connectors to the ToF sensors. The picture below shows the connections between ToF sensors, IMU, Artemis Nano, and the QWIIC breakout board.

I ran the example File->Examples->Apollo3->Example05_Wire_I2C to identify the address of the ToF sensor. The displayed address is 0x29 (or 0b00101001 in binary) as shown below, which does not match the 0x52 (or 0b01010010 in binary) on the datasheet. This is because the ToF uses the last bit to specify the data direction (0 for read, 1 for write), and the example code only reads the first 7 bits. We can verify this by checking that 0x29 is indeed 0x52 left-shifted by 1 bit.

The VL53L1X ToF sensor offers three distance modes: Short, Medium, and Long. Short mode (max 1.3 m) is more resistant to ambient light, making it ideal for close-range obstacle detection. Long mode (max 4 m) provides the farthest range but is significantly affected by ambient light. Medium mode (max 3 m) offers a balance between range and light resistance.

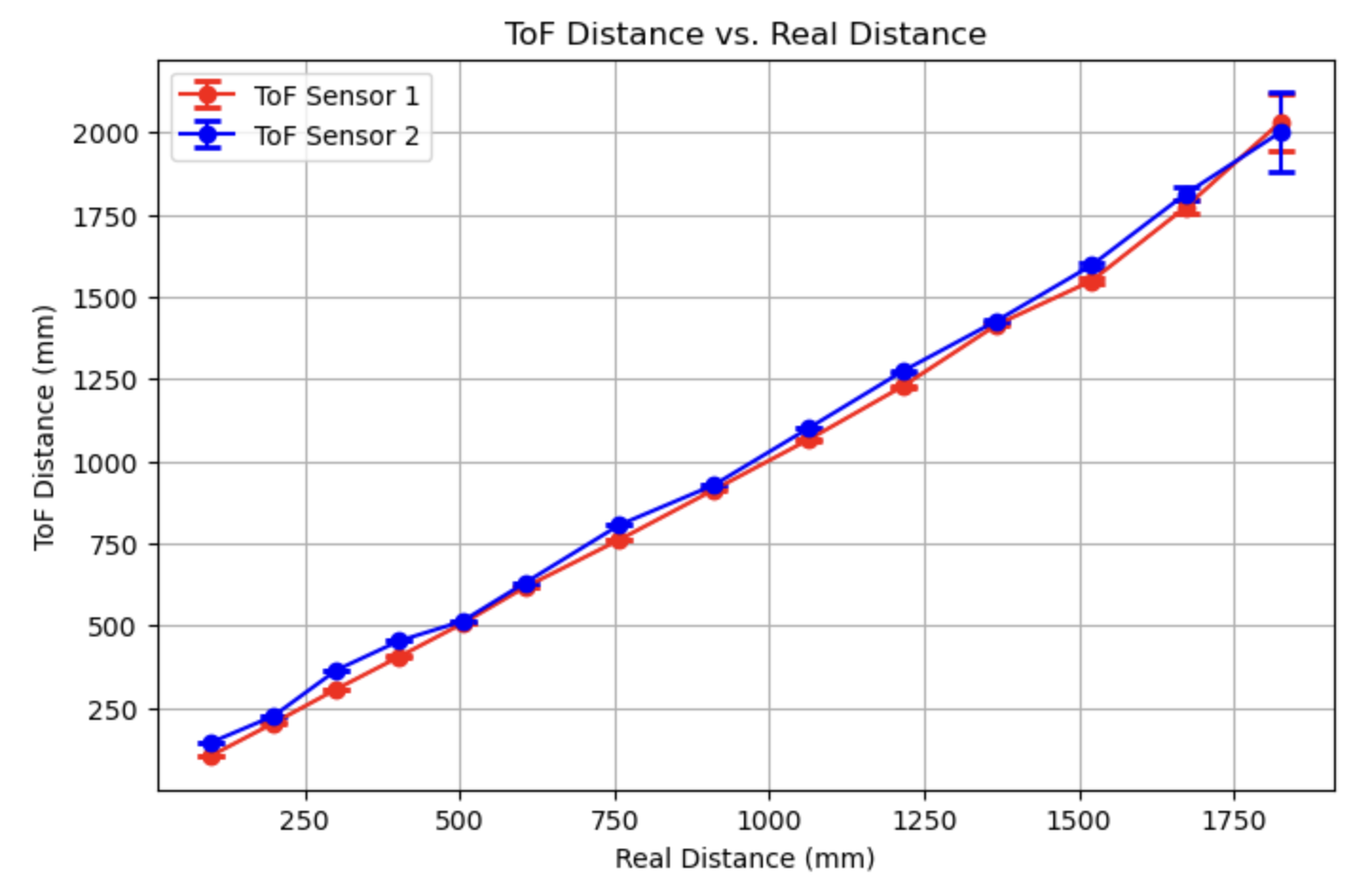

I tested the sensors measurements by setting them at certain distances away from a wall and take measurements. A setup of the test is shown below.

I chose the short mode since 1.3m appears to be a reasonable maximum distance for the robot to detect obstacles. As shown below, both sensors are able to detect distances up to about 1.7m, and with decent accuracy. I took 50 measurements for each distance for each sensor, and the variances are shown as error bars below. The fact that the variances are small and that both sensor data closely align show that the sensor readings are repeatable.

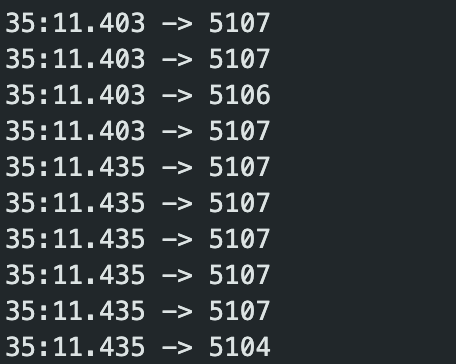

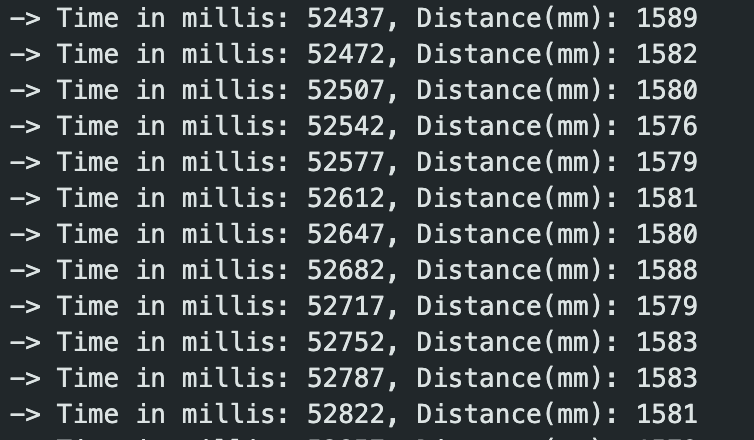

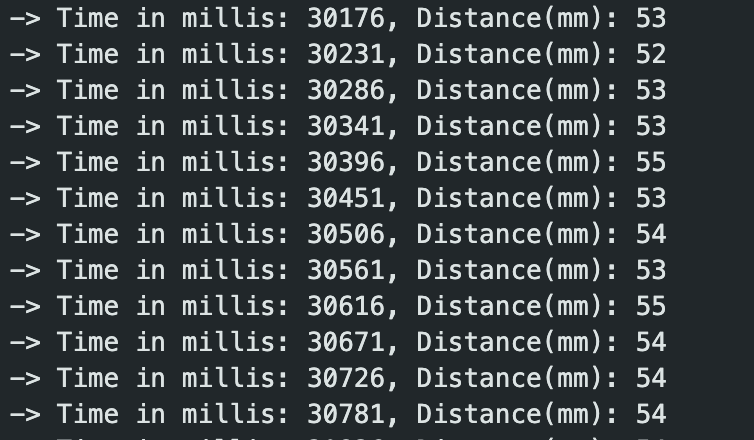

The ranging time varies between 55ms for distance of ~54mm to 35ms for distance of ~1580mm, calculated from the screenshots below.

As described in the prelab, in order for the sensor to run in parallel, one of them needs to have the address reconfigured after each reboot:

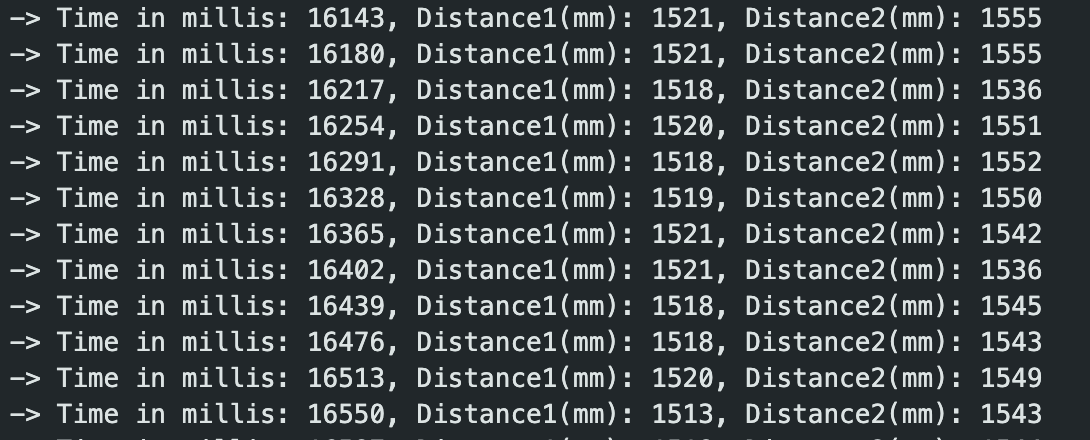

Both sensors are outputting at the same time as expected. Notice that sensor 2 consistently outputs a higher value, therefore an offset needs to be added in the future:

I removed the delay in the code and only output the sensor readings when the data is ready. The delay between sensor readings are around 40ms, which is much slower than the Artemis clock speed, therefore the limiting factor is the sensor reading speed.

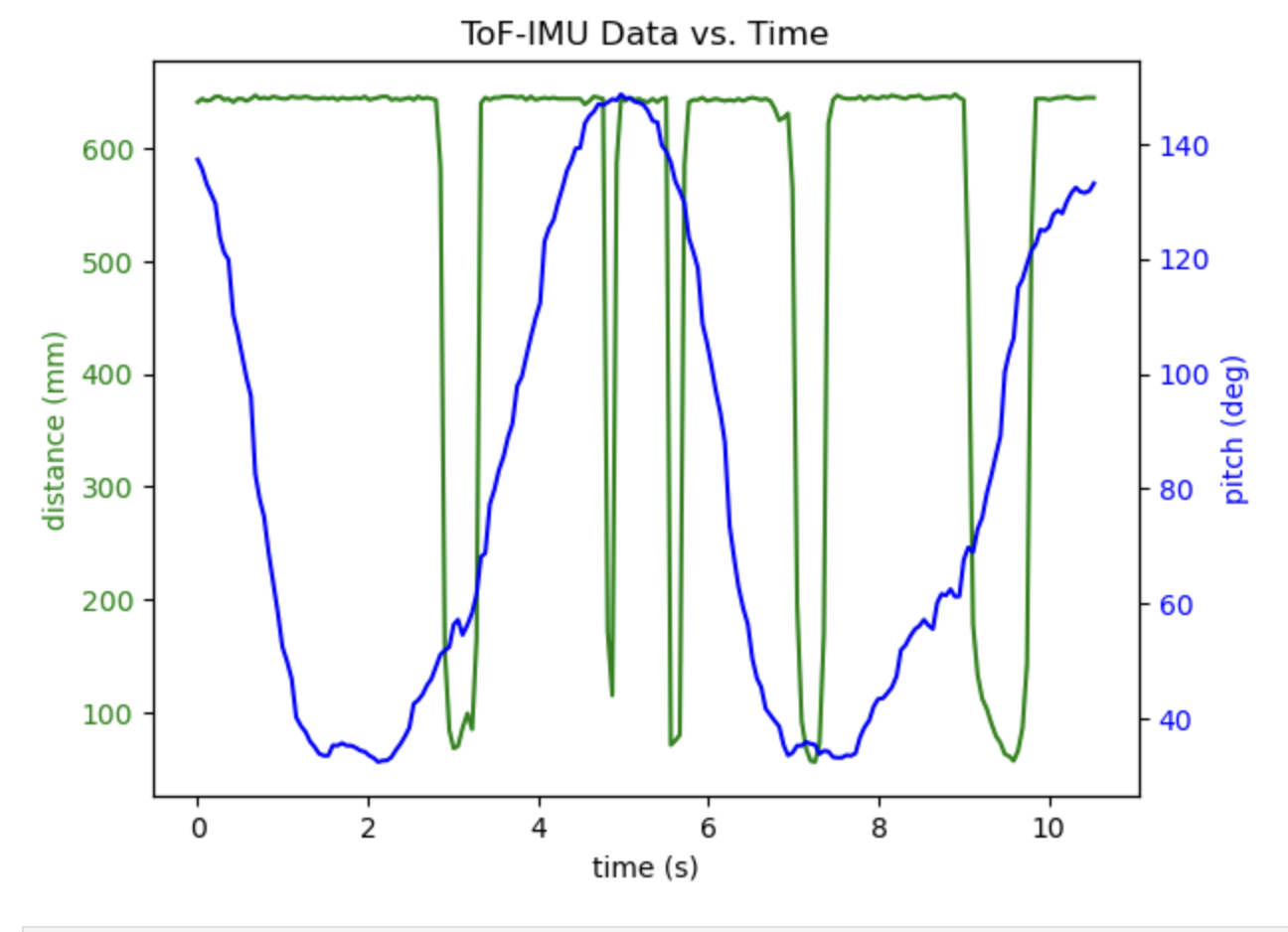

The following show the ToF sensor and IMU data collected at the same time by waving hand in front of the ToF sensor and swining the IMU sensor. Unfortunately my second ToF broke at this point so I was only able to record data from one ToF sensor.

Infrared sensors include Active IR sensors and Passive IR sensors. Active IR sensors are low-cost, simple, and fast but have limited range, making them ideal for short-range applications. The ToF sensors are an example of Active IR sensors. Passive IR sensors are energy-efficient, but are more sensitive to environmental changes.
I tested the sensors on the white walls, white blankets, and dark-blue blankets with the same distances to see if textures and colors affect the readings. I noticed that sensors readings are similar and accurate for the wall and the white blankets, but slightly smaller for the dark-blue blankets. From this prelimiary experient it appears that the sensors are more sensitive to colors than textures.

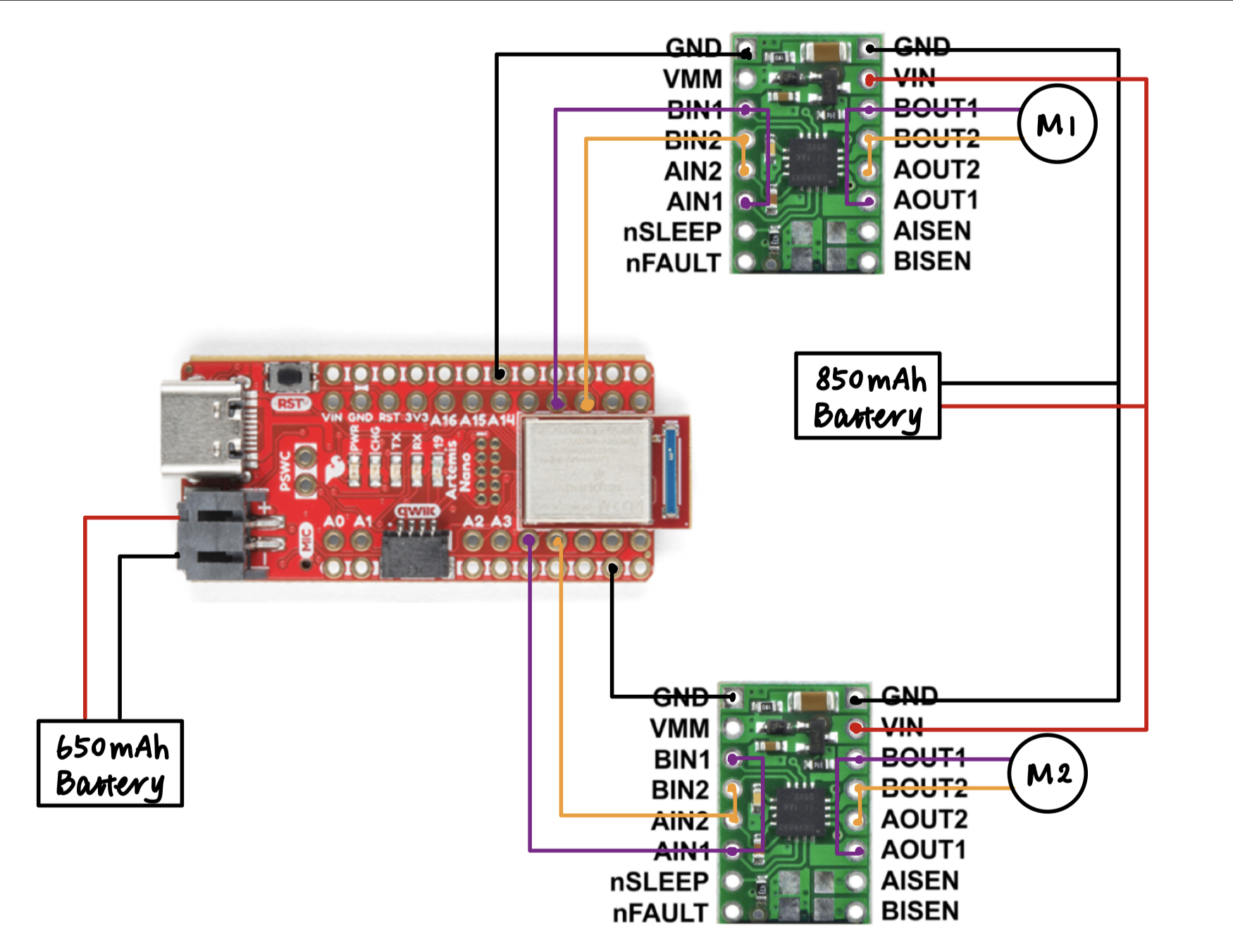

The following is a diagram of the connections between the Artemis board, the motor drivers, and the motors. Here pins 4, 5, 11, 12 are used on the Artemis board to driver the motors. In order to supply the motors with a larger current than the upper limit of the motor driver pins, we parallel-couple the two inputs and outputs on each dual motor driver. Additionally, we use separate batteries that share the same ground for the board and the motors to decouple their performance and reduce noise.

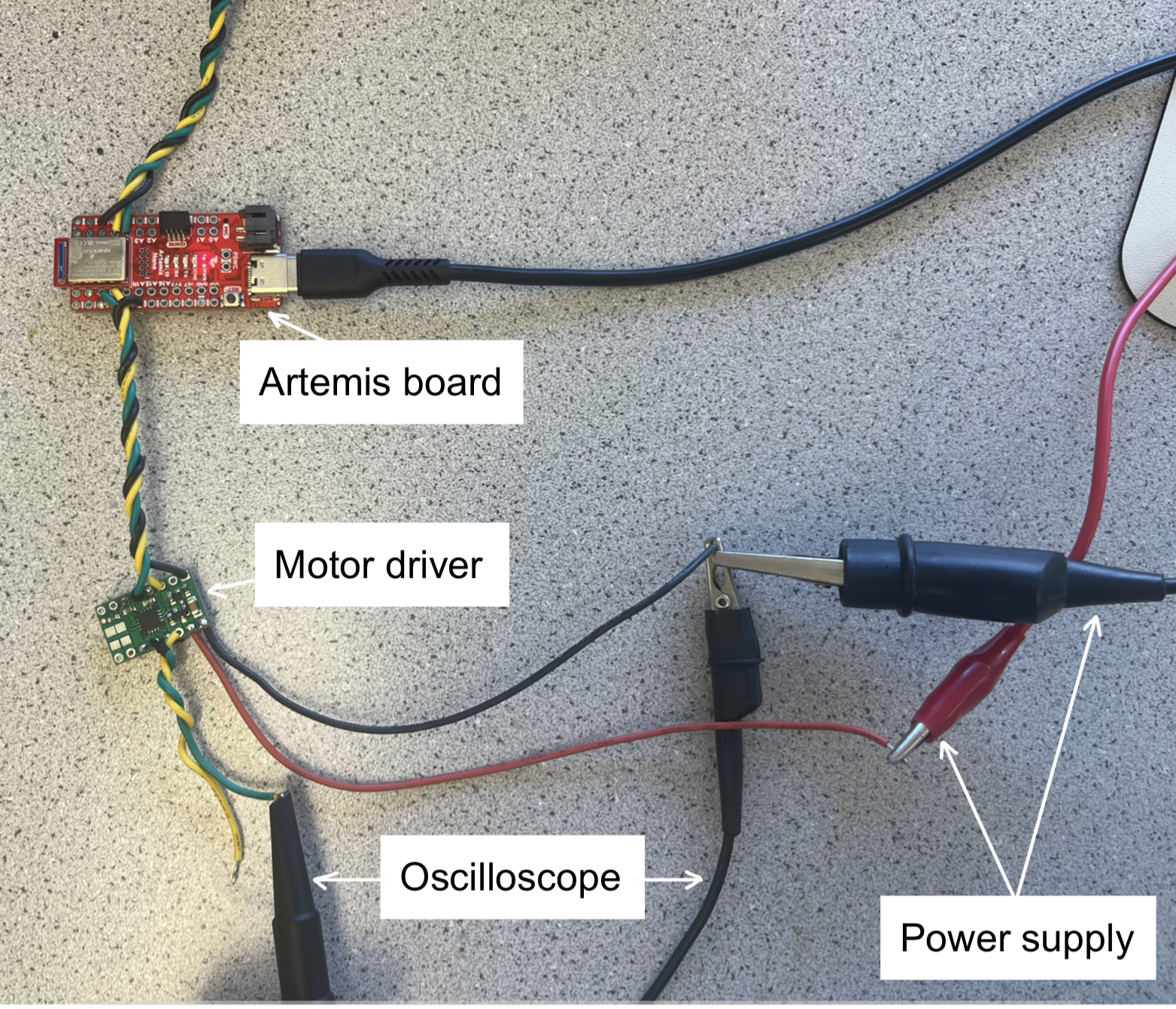

Before connecting all components to the robot, I first tested the motor drivers using the power supply to ensure the output PWM signals are correct. Below is the setup of one of the motor drivers hooked up to the oscilloscope and the power supply. The voltage setting in the power supply is 3.7 V, which matches the output of the batteries.

The code used to drive the motor drivers:

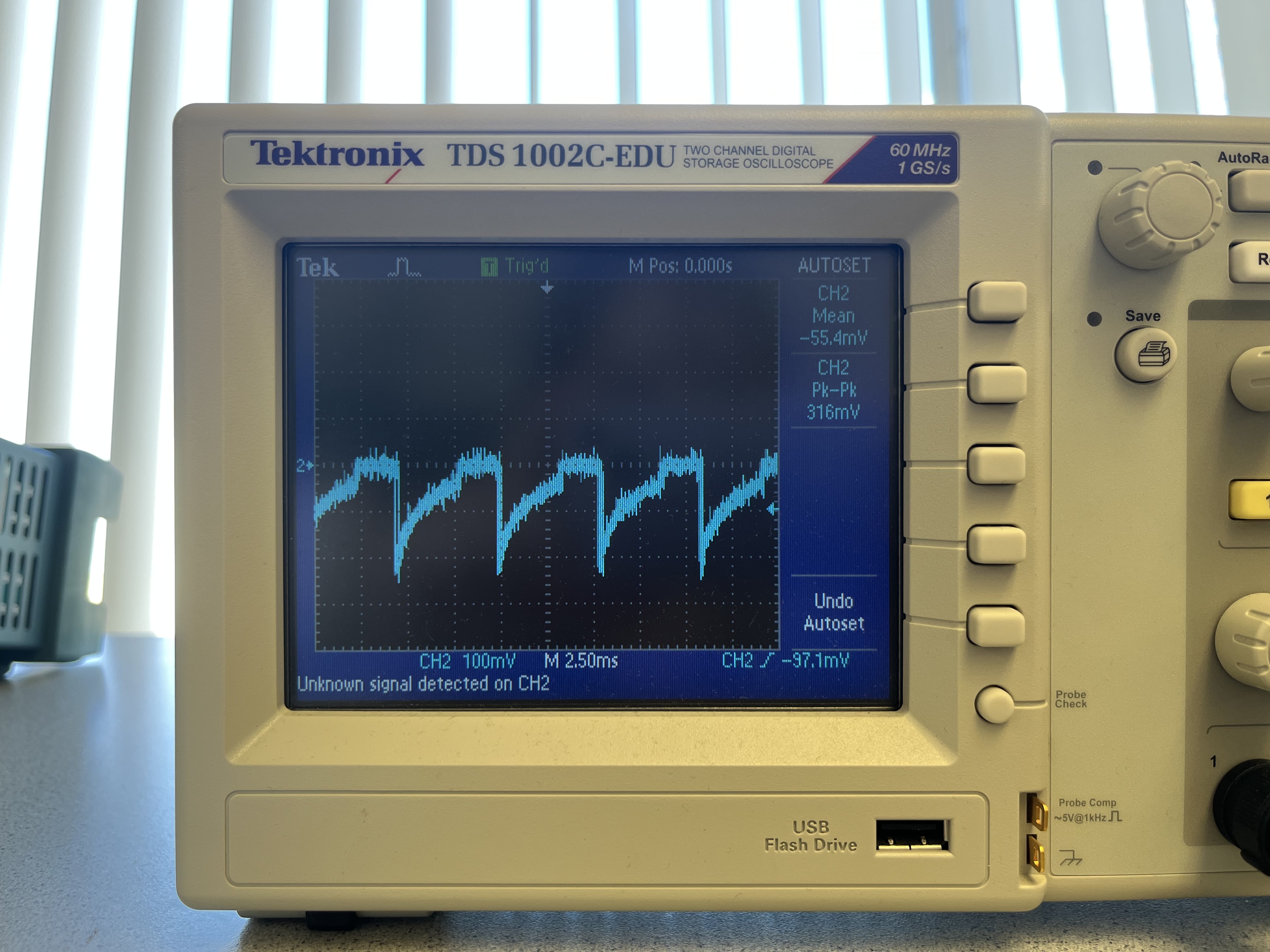

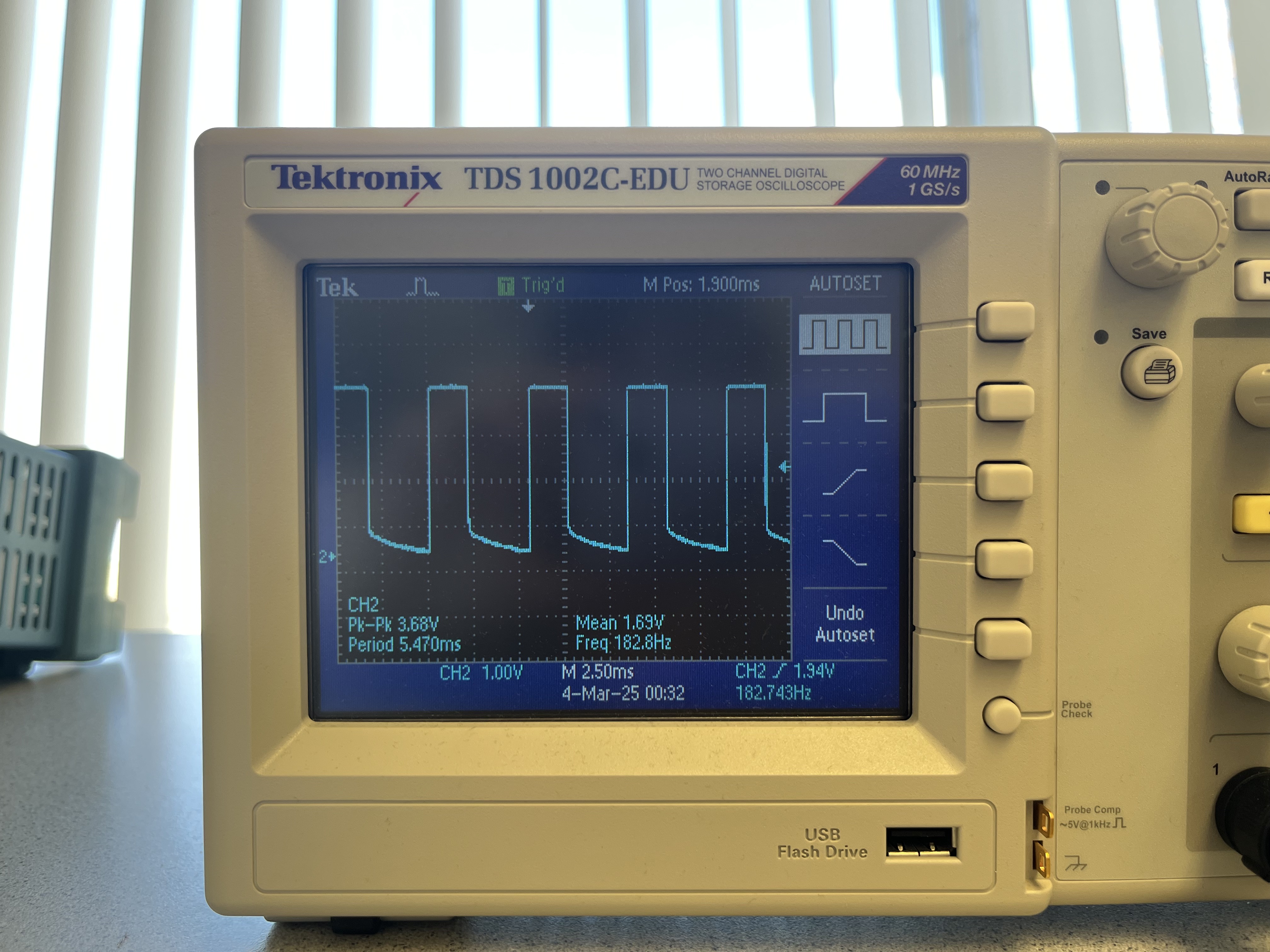

Outputs from the oscilloscope change as expected when the analogWrite values change. Between the first and second image below, I flipped the signal of analogWrite and thus changed the output for the green wire from High to Low. A smaller wave signal is reflected in the oscilloscope:

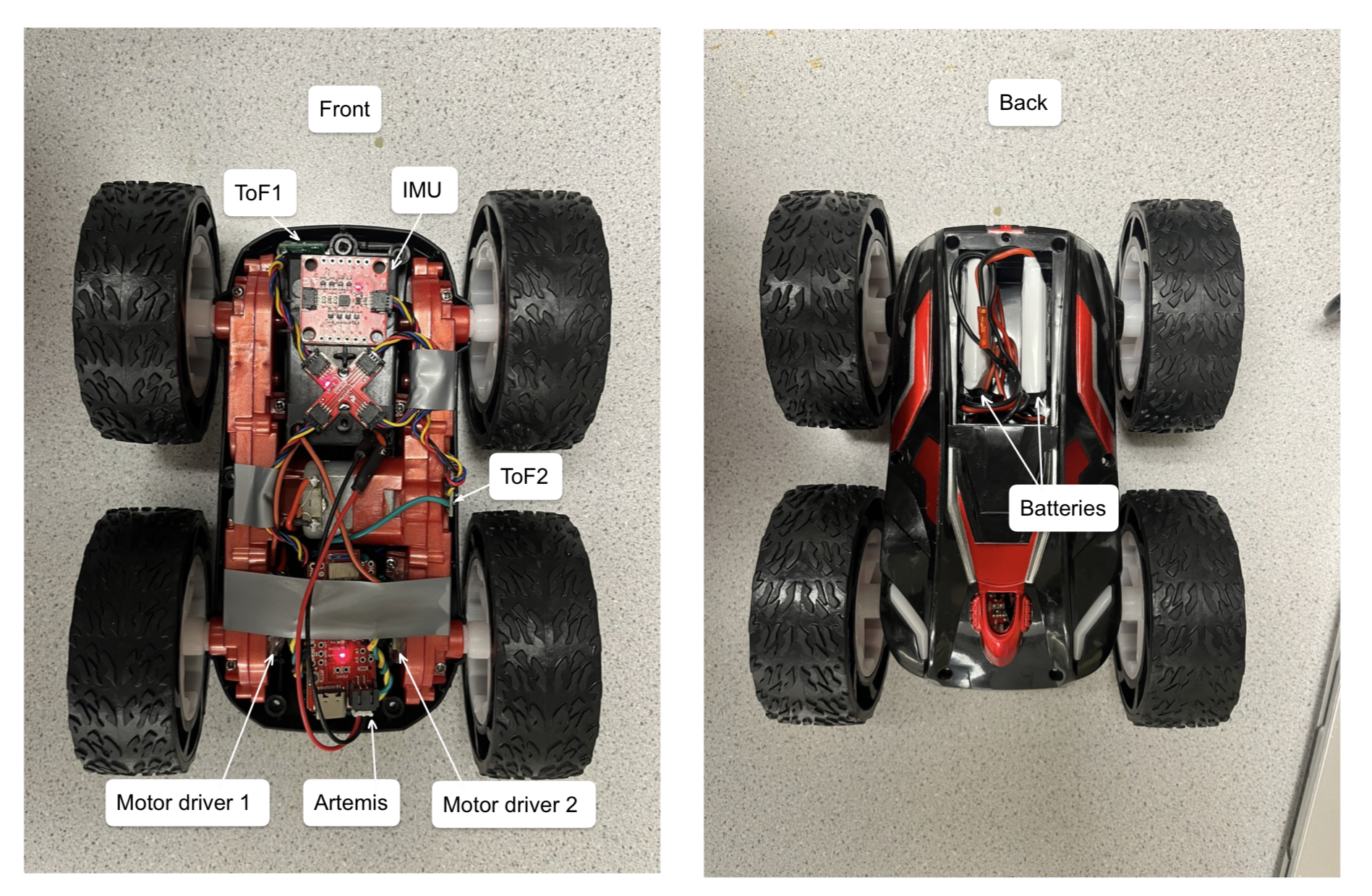

After ensuring both motor drivers work, I proceeded to wire all components to the car and was able to spin both the left and right wheels with the power supply.

The code used in this section is similar to the last one:

The range of PWM signal is from 0 to 255. In order to find the lower limits of PWM that allow the robot to move, I gradually increment the value passed into analogWrite from 0 to up to 65. It appears that the left wheel constantly encounters more resistance than the right wheel, and a offset of 20 is needed for them to achieve the same performance. Therefore the lower limits of PWM are 65 for the left wheel and 45 for the right wheel. After applying this offset the robot is able to move in a straight line. Below is a video showing that the robot stays within the center lane for about 7ft.

Below is an open loop control for the robot to stop in front of the door with a slight turn.

Functions used are defined as follows, for example:

Once the robot is in motion, it requires a smaller PWM value to continue moving foward. I used the following code to determine this lower PWM limit, which decreases the PWM value every few seconds until we observe that the robot stops. The lower limit is about 25 for the right wheel and 45 for the left wheel. My robot has sticky wheels and does not have consistent PWM that keeps it moving at the lowest speed.

The following code is used to check the analog write frequency:

It appears that the delay between analog writes is around 5.1ms. This is comparable to my IMU delay found in Lab 2 (~5.5ms). Since a general rule of thumb of feedback control is that the sampling frequency (IMU) should be significantly higher than the control frequency (analog write), this delay time for analog write is acceptable. Manually configuring the timers to generate a faster PWM signal could potentially create a smoother output for quick response in the robot, but will not have significant impact on the feedback control performance.

In order to make debugging and tuning the controller easier during the lab, I set up the program such that the robot start on an input from my computer sent over Bluetooth, where the numbers passed in are Kp, Ki, Kd, and maximum speed percentage:

Upon receiving the Bluetooth command, the robot will run the PID controller for a fixed amount of time:

I rescaled the PWM to speed percentage which ranges from 0 to 100.

First I implemented the P controller with Kp = 0.01. This value is chosen such that there it will not be able to overcome static disturbance when it's close enough to 1ft from the wall, as shown below in the plot and the video. Later I'll demonstrate that adding I controller will make up for that.

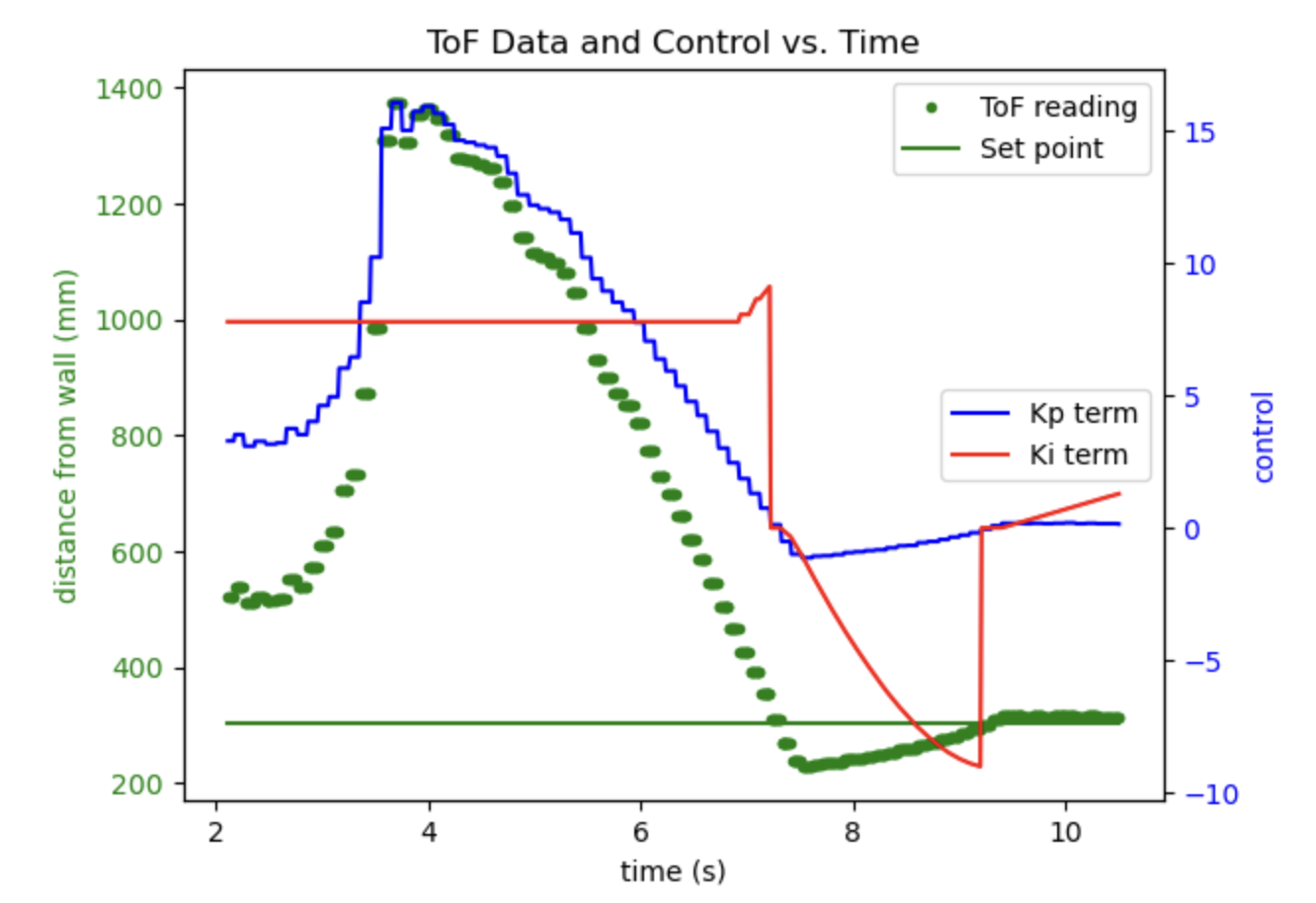

I then added the I controller with partial wind-up protection with Kp = 0.015 (a small increase from before but still not able to overcome static friction) and Ki = 0.0001. With this additional control, robot is able to overshoot slightly and back up properly.

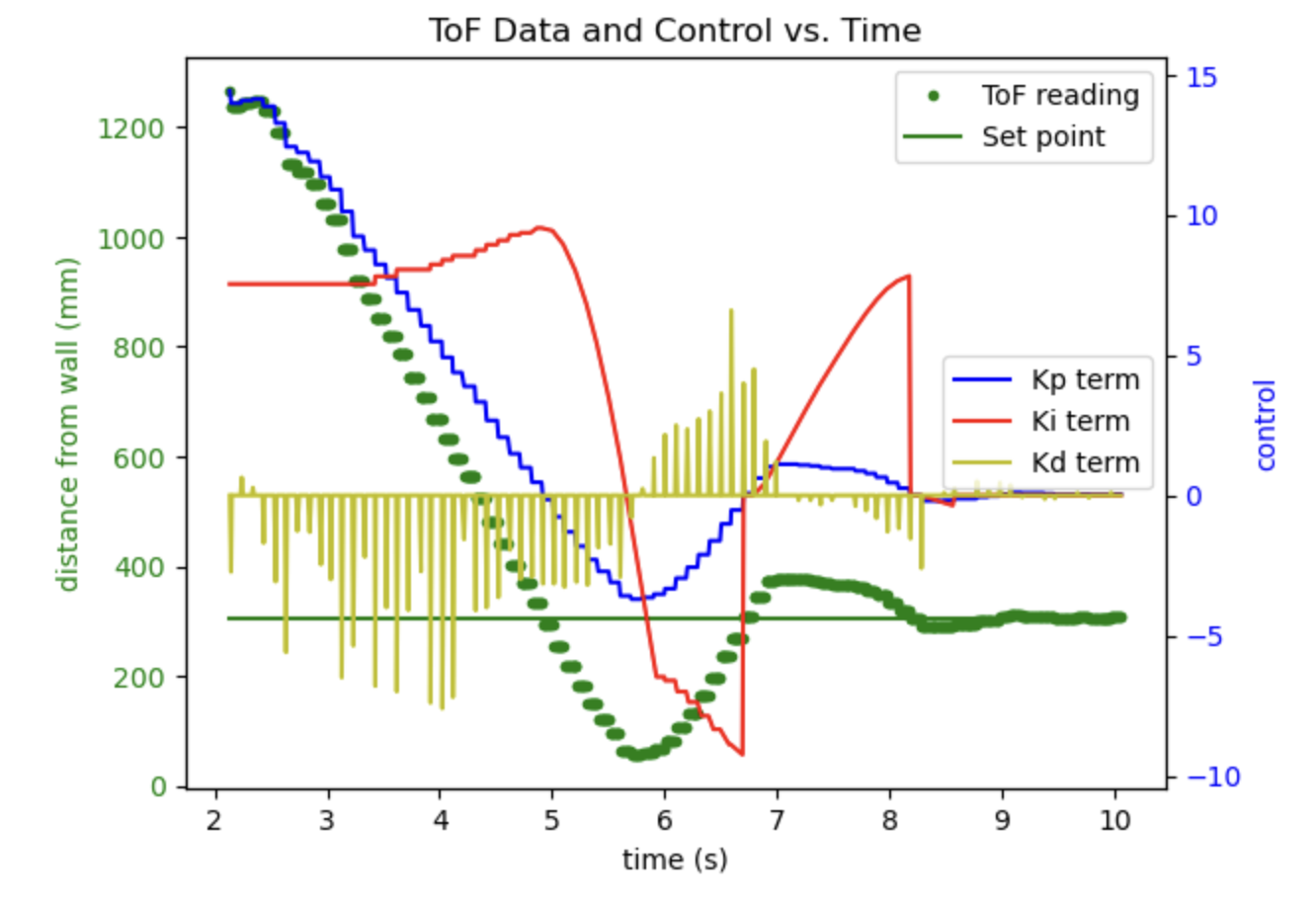

I then added the D controller to provid some damping and reduce the overshoot. The plot below is with Kp = 0.015, Ki = 0.0002, and Kd = 1. Notice that the Kd term counter acts the other terms to provide some damping. I decided that the derivative kick prevention is not necessary here because we do not need to change the set point during the run.

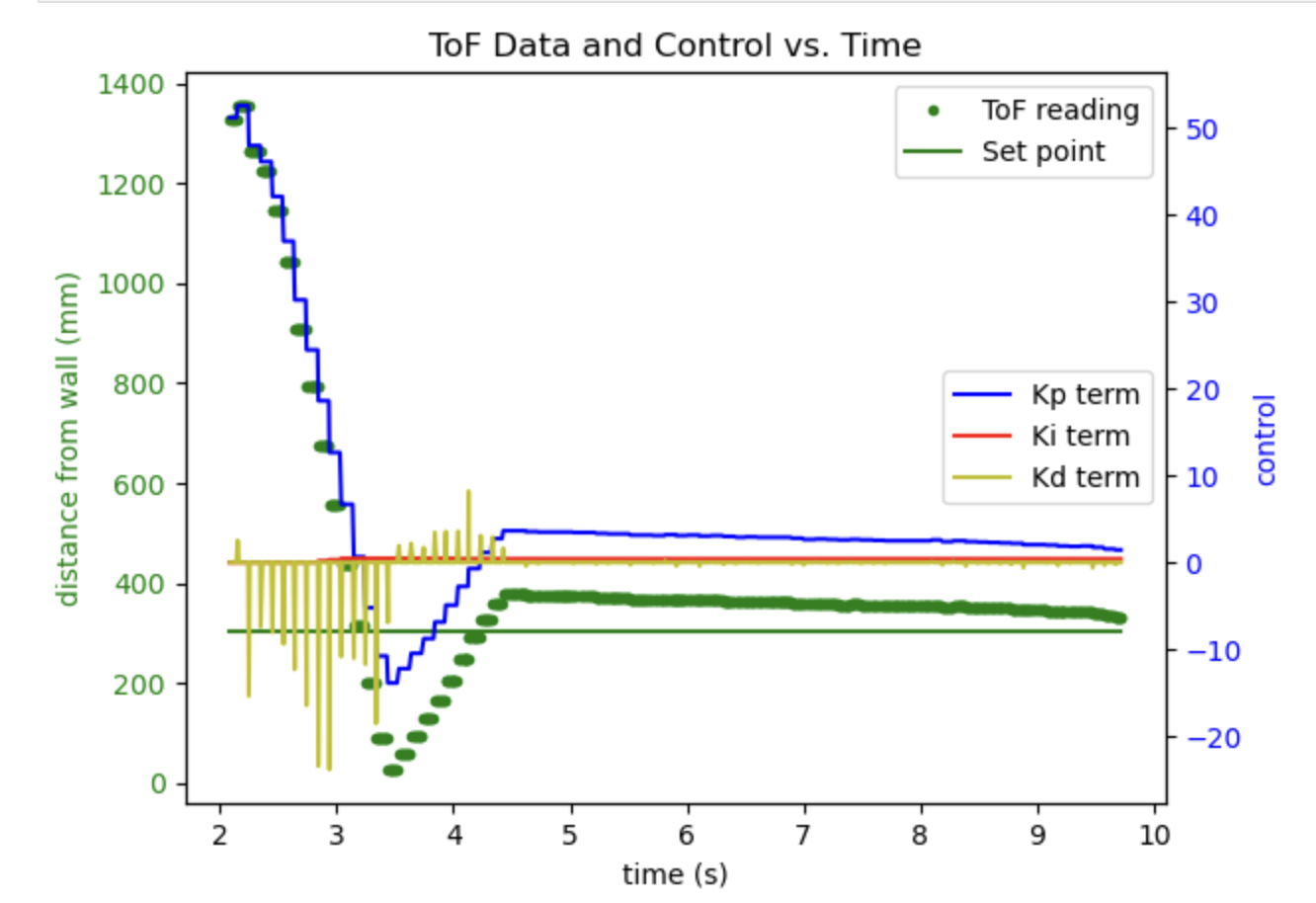

The complete code for the controller is below:

With PID fully implemented, I was able to tune them to a faster speed without running into wall. The highest velocity calculated from the plot below is 1.6m/s, with Kp = 0.05, Ki = 0.0001, Kd = 1, and 70% of highest speed.

I was able to decouple the ToF sampling rate from the controller output rate by using the latest data available without waiting for the ToF sensor to sample. To achieve this, I removed the delay in the function get_ToF() in line 8 in the pseudo code section in Prelab. The sampling delay for ToF found in lab 3 was about 55ms, and the control delay here, found from (final time - start time)/number of samples, is about 9ms.

I used the long mode for ToF sensor to meet the requirements of starting from 2-4m from the wall.

Lines 8 - 9 and 13 in the code from the previous section is implemented for wind-up protection. Line 8 pauses integration when the controller is saturated, which is important because we loose control when the motor is saturated. This is especially useful when Kp gain is high. Line 9 pauses integration when the control direction matches the error direction, which is important especially for low Kp gains because it can significantly reduce the overshoot. Below is a demonstration without wind-up:

With wind-up, the system behaves well even with different floor conditions.

Similar to lab 5, in order to simplify debugging and tuning the controller, I set up the program such that the robot start on an input from my computer sent over Bluetooth, where the numbers passed in are Kp, Ki, Kd, and maximum speed percentage:

Upon receiving the Bluetooth command, the robot will run the PID controller for a fixed amount of time:

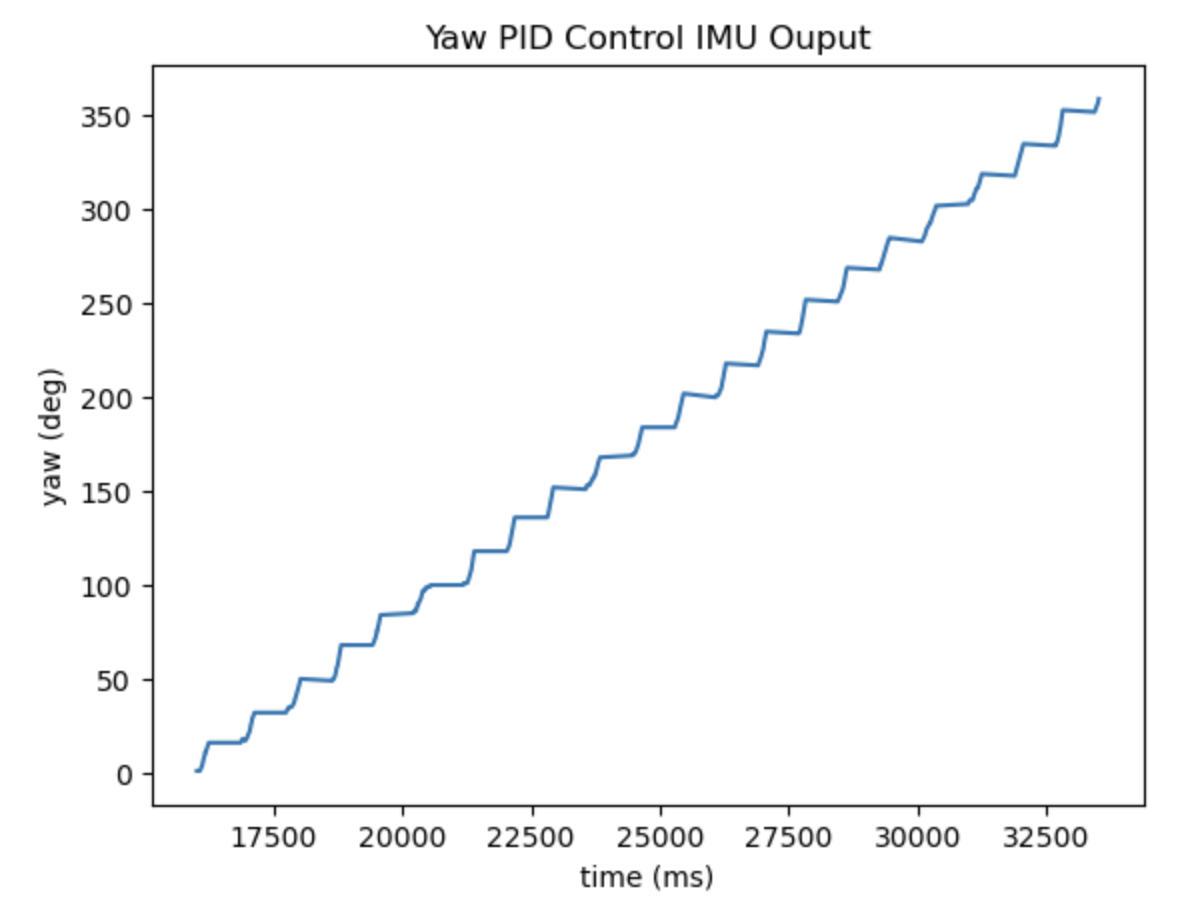

I rescaled the PWM to rotational speed percentage which ranges from 0 to 100.

First I implemented the P controller with Kp = 1. This value is chosen to be small enough such that the robot will not be able to overcome small disturbances. As shown below in the plot and the video, the robot is stuck in the disturbed position. Later I'll demonstrate that adding I controller will make up for that.

I then added the I controller with partial wind-up protection with Kp = 1 and Ki = 3. With this additional control, robot is able to slowly adust itself back to the original position.

The complete code for the controller is below:

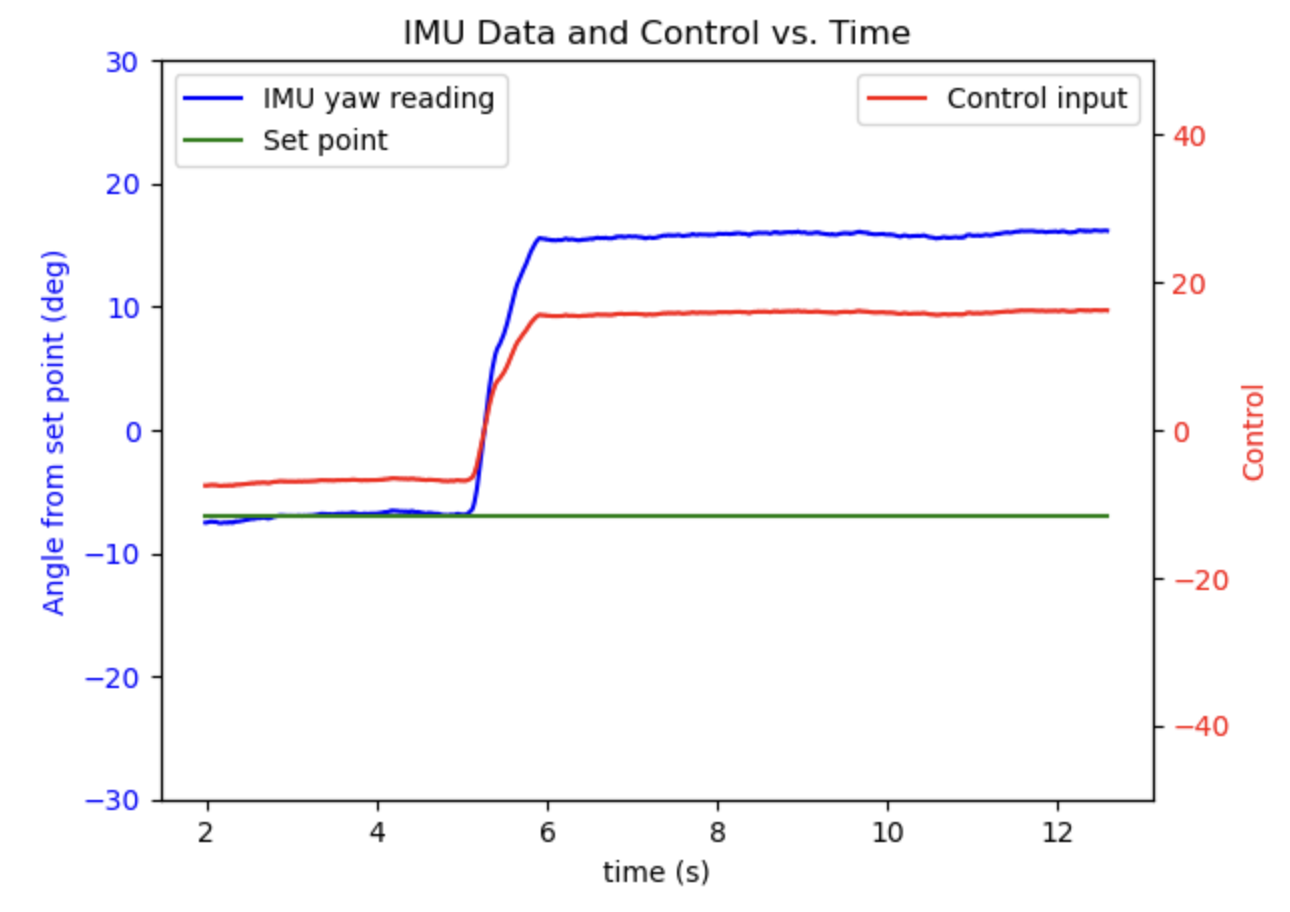

With PID fully implemented, the robot is able to behave as expected with Kp = 4, Ki = 0.5:

I was able to decouple the IMU sampling rate from the controller output rate by using the latest data available without waiting for the IMU sensor tgito respond. The sampling delay for ToF found in previous labs was about 18ms, and the control delay is about 9ms.

Lines 8 - 9 and 13 in the code from the previous section is implemented for wind-up protection. Line 8 pauses integration when the controller is saturated, which is important because we loose control when the motor is saturated. This is especially useful when Kp gain is high. Line 9 pauses integration when the control direction matches the error direction, which is important especially for low Kp gains because it can significantly reduce the overshoot

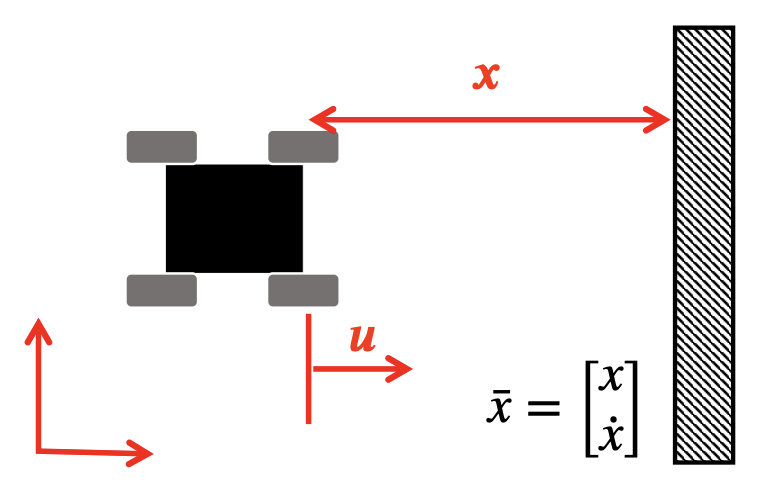

In order to implement the Karman Filter, we first need to model the system with state-space representation. The following equations describe the steps of obtaining the dynamic equation, where x is the distance between the car and the wall, u is the control input, and d is the coefficient of drag force.

The unknown parameters are d and m, which we can obtain from an open loop run of the robot with a step input.

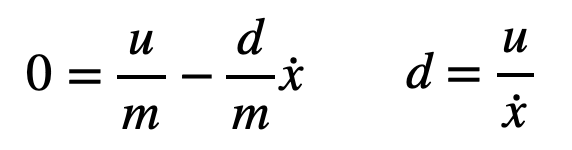

When the velocity reaches steady state, the acceleration is zero, and we can calculate the drag coefficient:

This is a first-order system for velocity. As the system is reaching the steady state speed, we can express the velocity in terms of time as shown in the following equations. By finding the 90% rise time and 90% velocity, we can calculate the equivalent mass of the system.

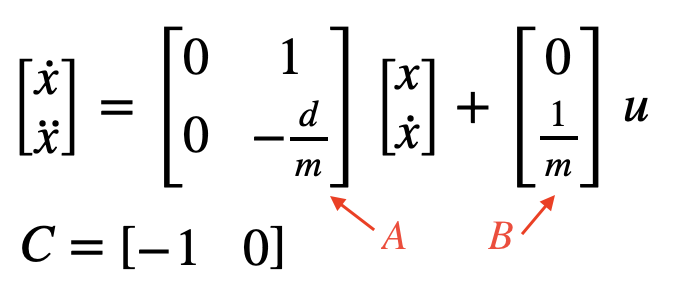

Finally, using the parameters found, we can construct the state space representation of the car:

Running the car at about 55% of the maximum motor speed while collecting ToF gives the following data:

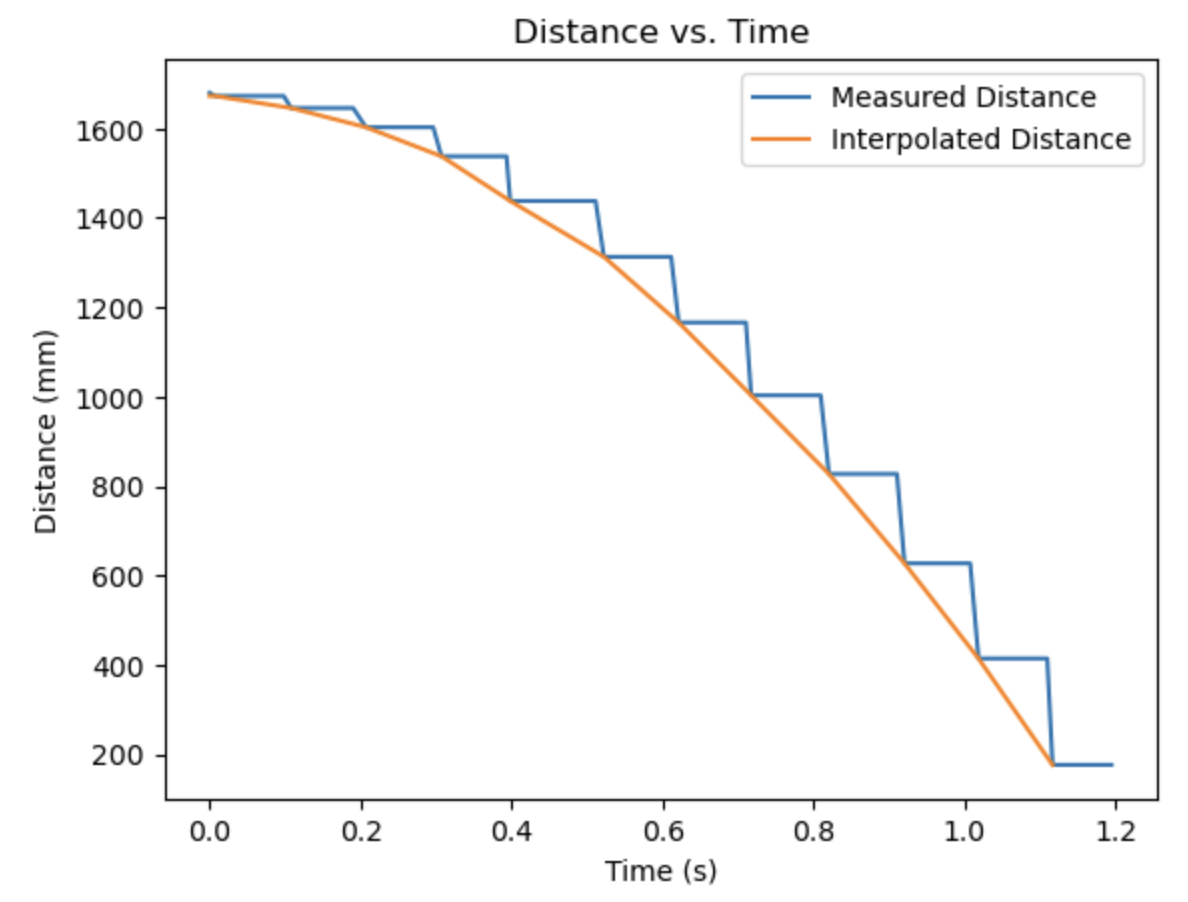

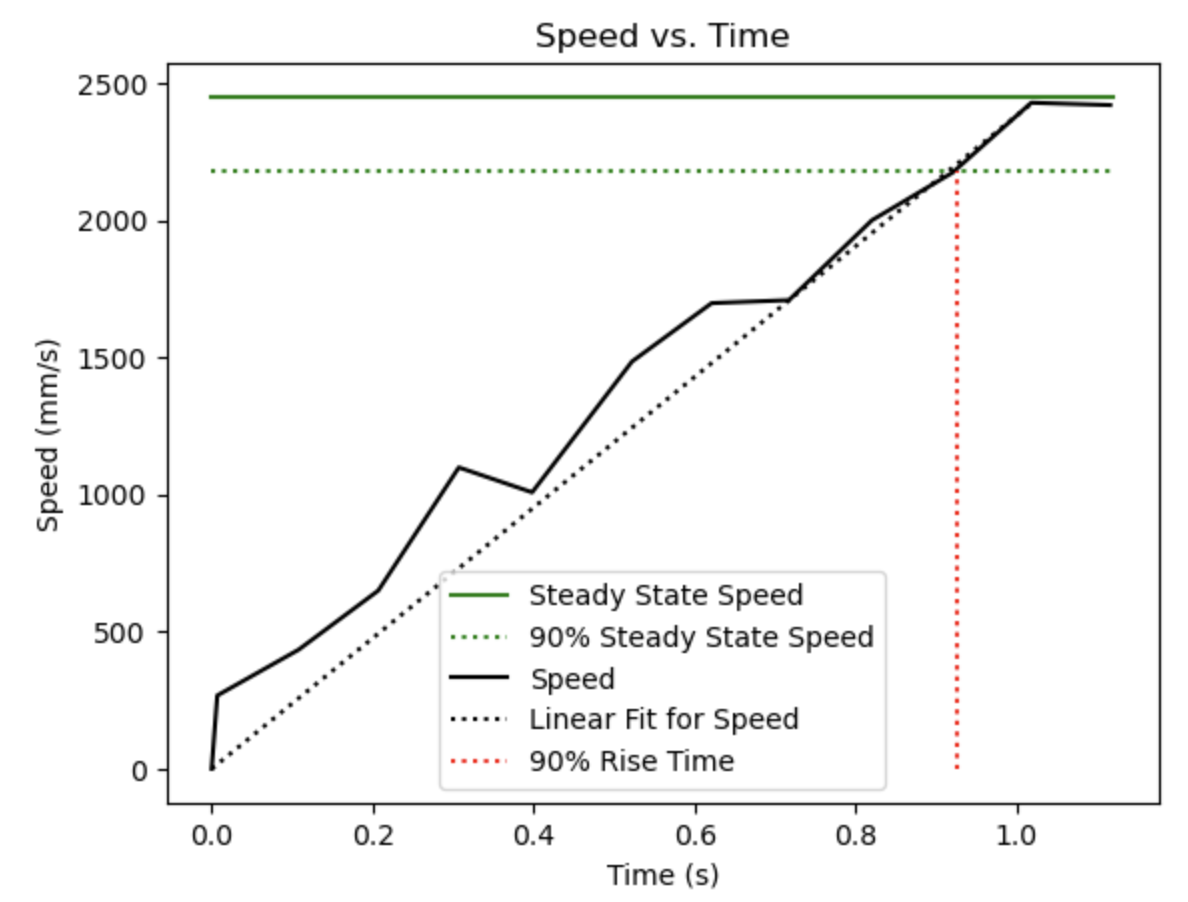

With simple processing of the data, I found the steady state speed to be about 2.43mm/ms, and the time to reach 90% of steady state speed is about 925ms:

From there, we can estimate the drag coefficient d = 55/2.43 = 22.6, and equivalent mass m = -22.6*925/ln(0.1) = 9090.

We have the values for A and B matrices from the previous section. Since both the ToF sensor collects data and the controller sends commands at discontinuous time steps, it is necessary to discretize our state space representation:

Here dt is the time between each loop of the control signal. From data collected in Task 1, the control loop is able to send about 135 commands in 1200ms, so the time delay is dt = 1200/135 = 9ms.

Additionally, we need initial guesses for the process noise Sigma_u:

and sensor noise Sigma_z:

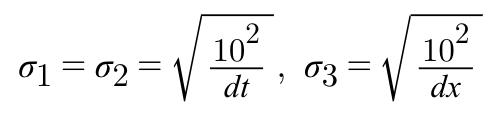

Plugging in dt = 9ms and dx = 2mm into the following equations:

We get sigma1^2 = sigma2^2 = 11, sigma3^2 = 50. These values are later tuned to adjust the weights of the measurements and predictions.

Putting these all together, we can then initialize the Kalman Filter:

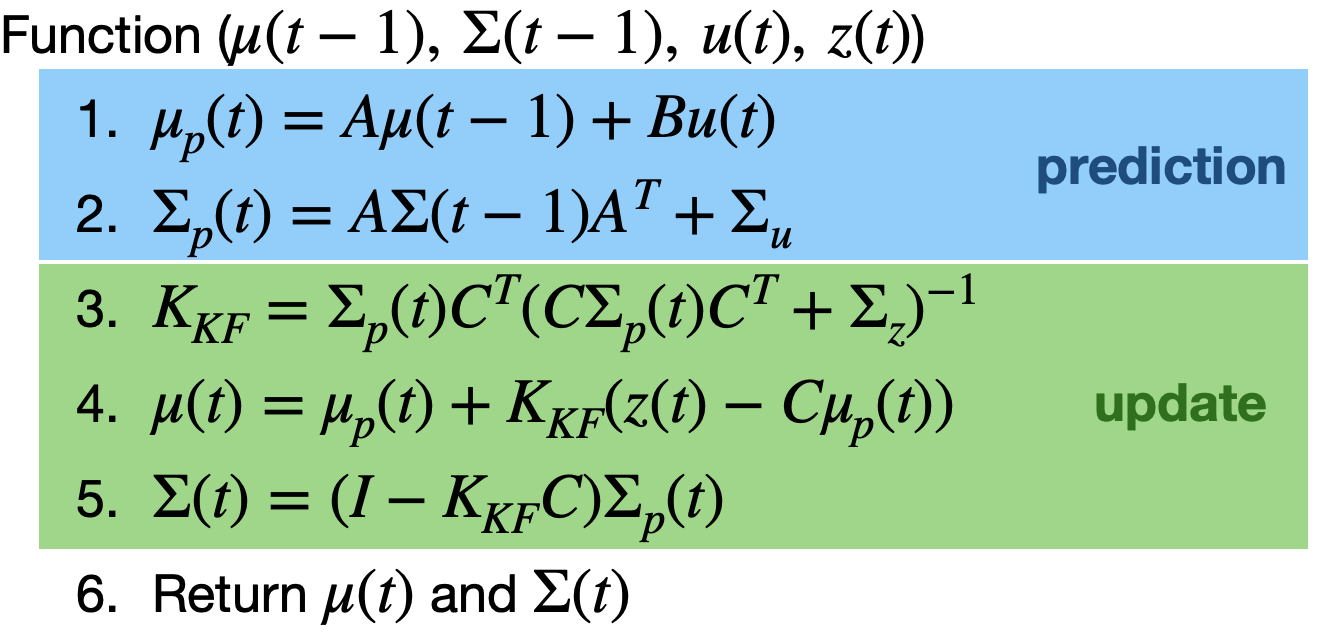

The Karman Filter consists of the prediction step, where a new state is estimated with the previous state and the new control input, and the update step, where the new state estimate is corrected with the current sensor measurement:

Here is the implementation of the Kalman Filter in Python:

To call the Kalman Filter:

I tested the Kalman Filter on a set of data collected in Lab 5: PID Position Control. With small Sigma_z/Sigma_u values, we put more confidence in the current measurements and less in the predictions, and the Kalman Filter follows the ToF sensor data very closely:

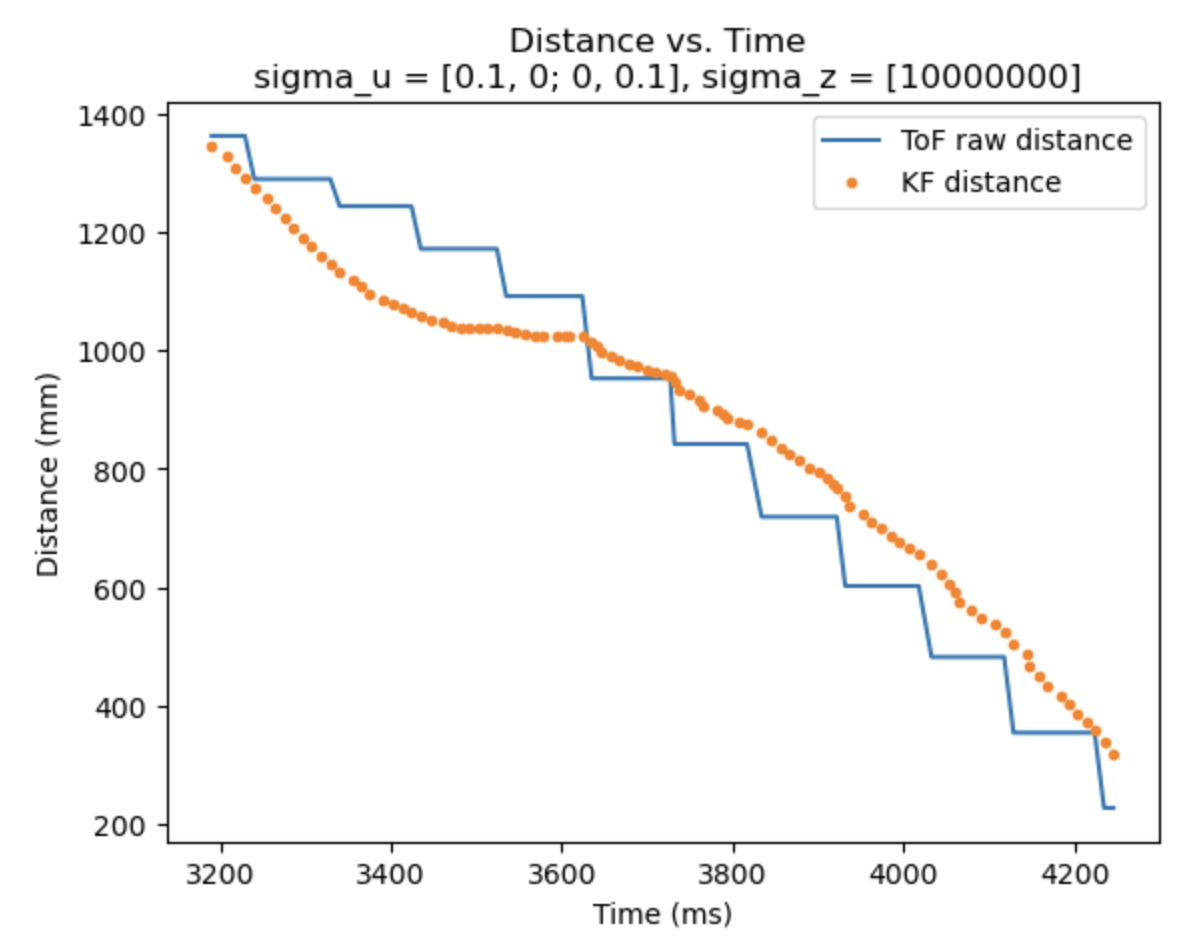

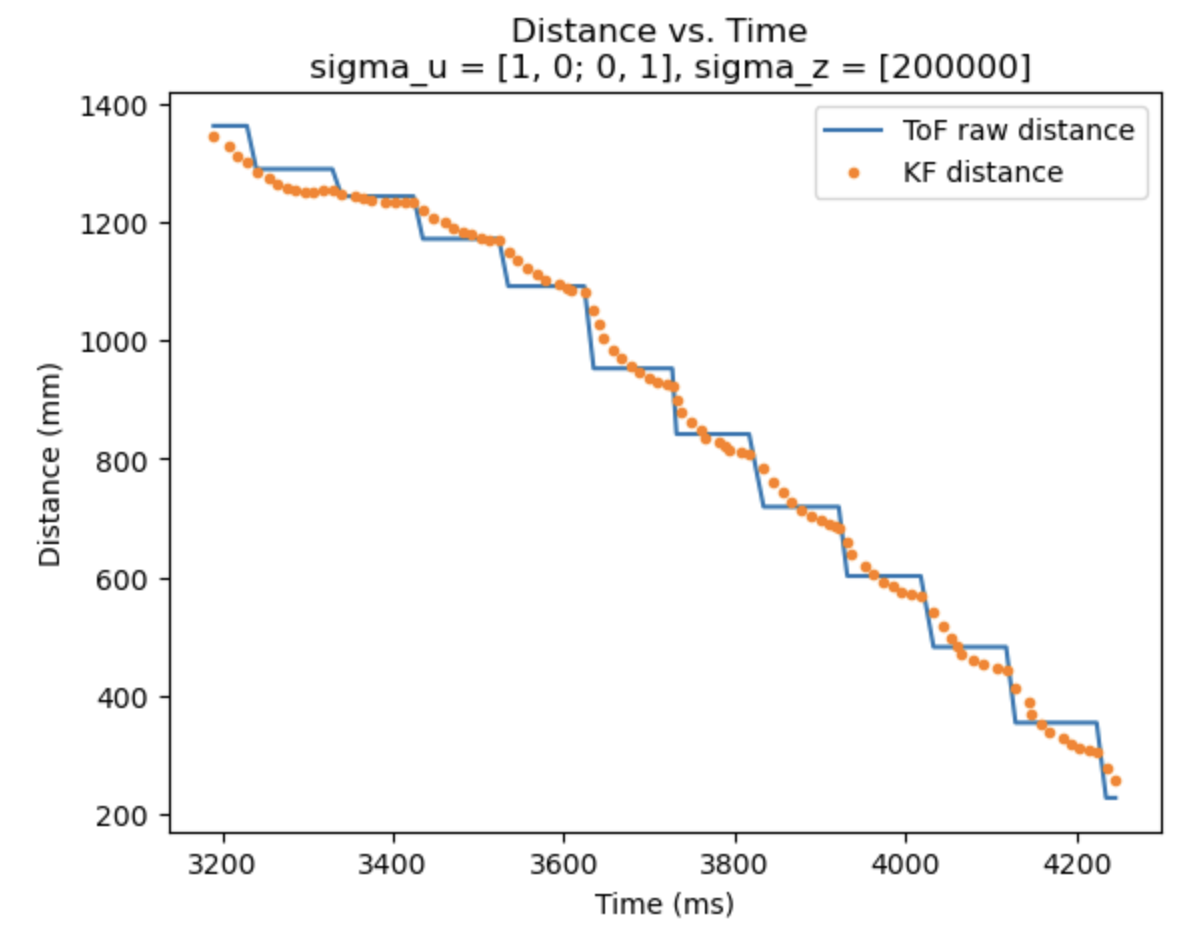

As we increase the Sigma_z/Sigma_u ratio, we trust the current measurements less and the predictions more, the Kalman Filter follows a smooth path which is what we would expect for a sensor with faster sampling rate:

But when the Sigma_z/Sigma_u ratio is too large, we are not trusting the current measurements at all but heavily rely on the prediction, which can give us predctions that are significantly off and not useable:

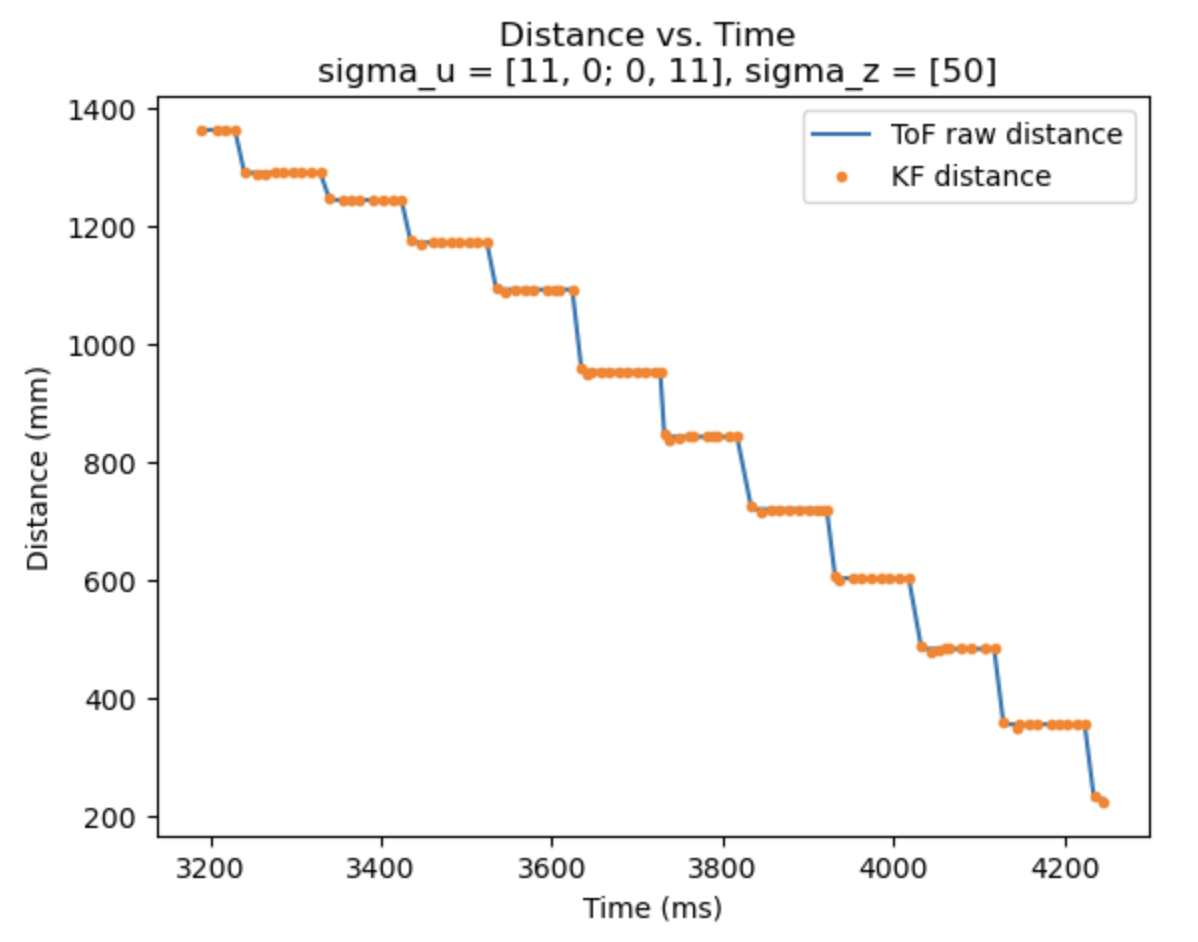

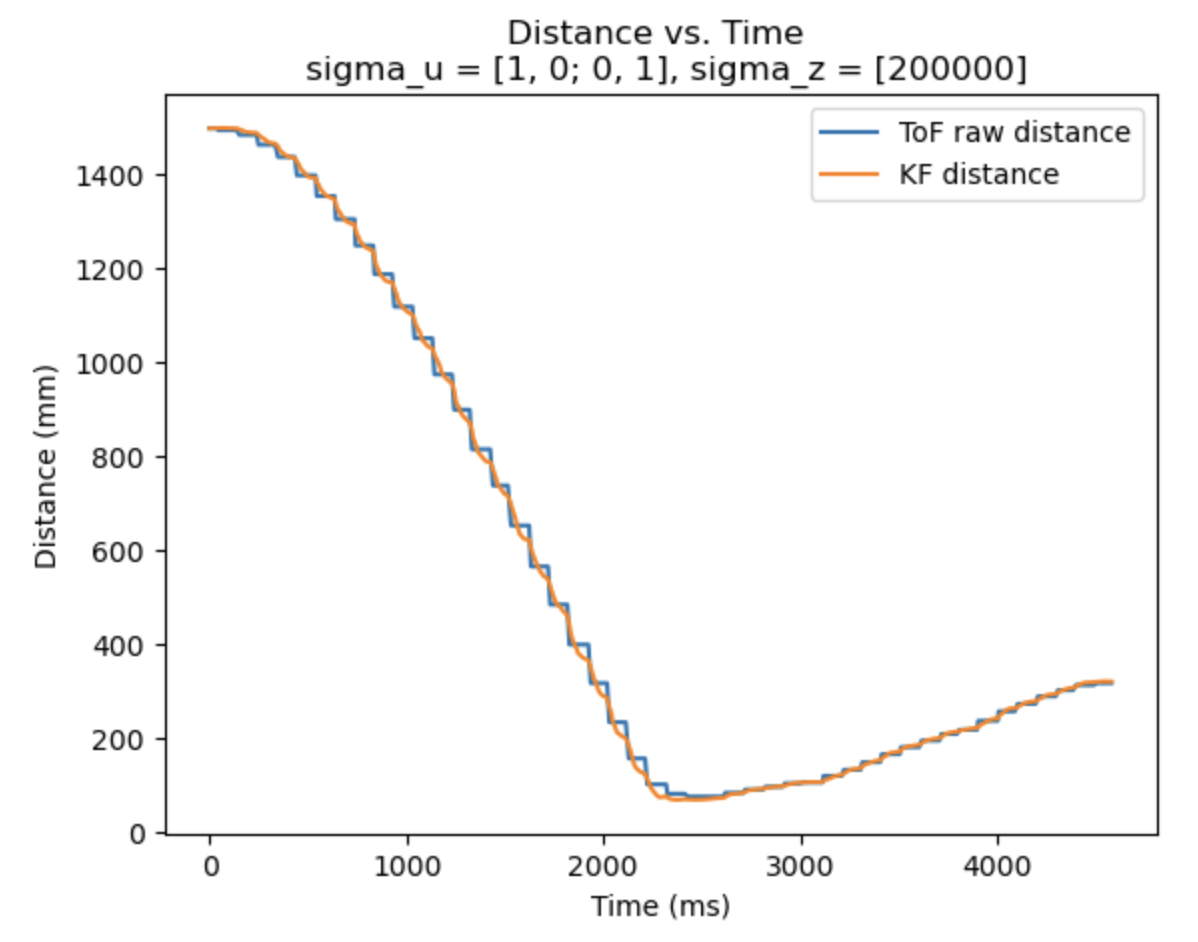

From there, I found a suitable range of KF covariance matrices values for the next step.

Task 4. Implement KF on the Robot

I implementaed the Kalman Filter on the robot:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36

#include //Use this library to work with matrices: using namespace BLA; //This allows me to declare a matrix // Declare and initialize Ad, Bd, C, matrices Matrix<2,2> Ad = {1, -8.9, 0, 1.022161}; ... // Declare and initialize covariance matrices sig_u and sig_z Matrix<2,2> sig_u = {1, 0, 0, 1}; ... // Declare control input u and measurement y Matrix<1> u; ... // Declare and initialize initial states mu and initial uncertainty sigma Matrix<2,1> mu = {dist[0], 0}; ... // Implementation of Kalman Filter void KF(float ui, float yi) { u = {ui}; y = {yi}; Matrix<2,1> mu_p = Ad*x + Bd*u; // prediction Matrix<2,2> sig_p = Ad*sig*~Ad + sig_u; // prediction Matrix<1,1> sig_m = C*sig_p*~C + sig_z; // update Matrix<2,1> kf_gain = sig_p*~C*(Invert(sig_m)); // update Matrix<1,1> y_m = y - C*mu_p; // update mu = mu_p + kf_gain*y_m; // update sigma = (I - kf_gain*C)*sig_p; // update }

The data collected indicate the effectiveness of the Kalman Filter:

Here is a video showing the KF implemented on the robot:

Retriving the data from the robot confirms that the KF is implemented correctly:

In order for the robot to perform a backflip, its center of mass must be close to the front, as shown below. Therefore I placed batteries in the front pocket of the car and added additional mass such as bolts.

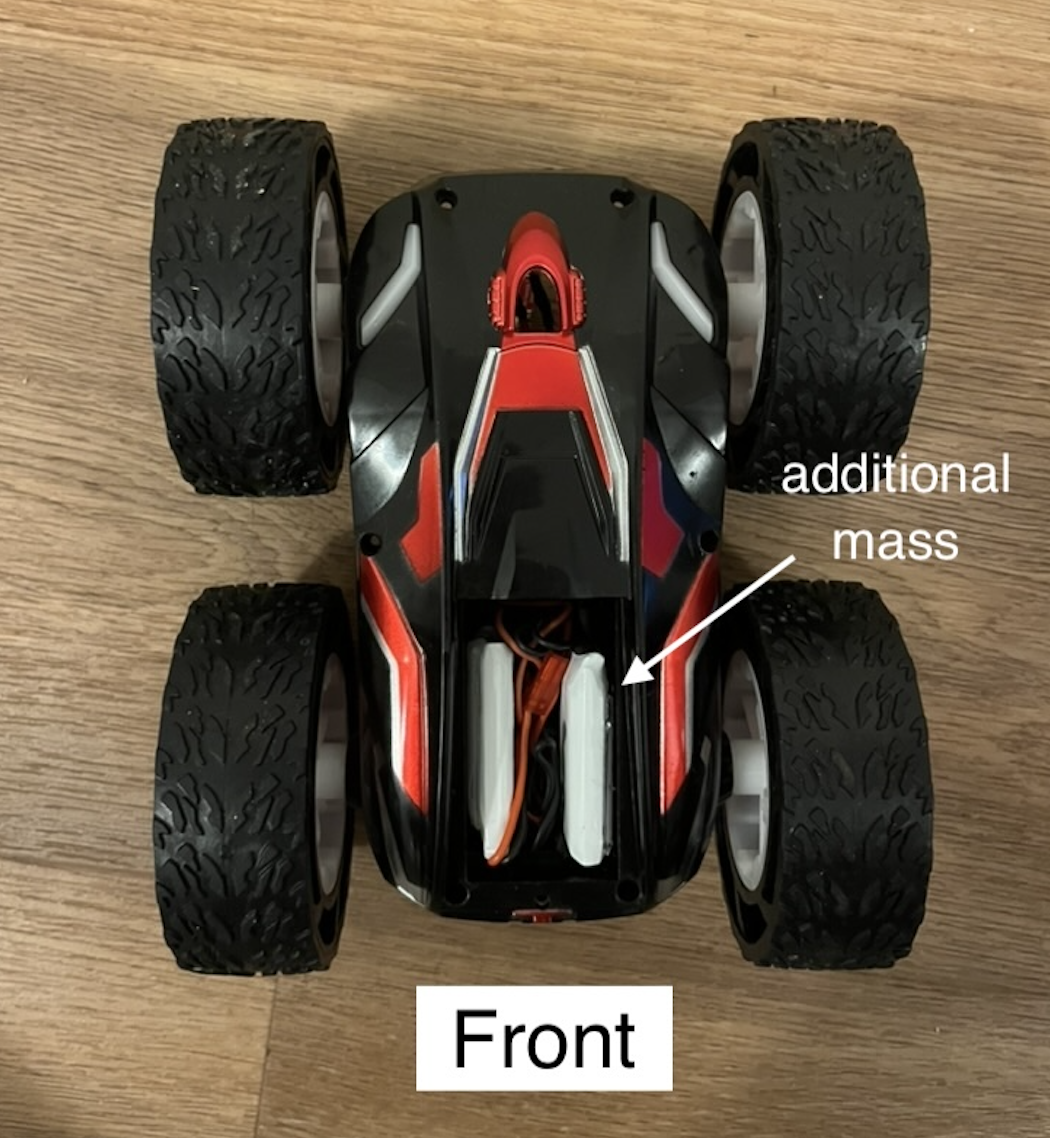

Since I'm doing this stunt at home, in order to recreate the sticky pad setup in the lab environment, I covered the floor around 1 ft away from the wall with tape, and then removed the tape but intentially left some sticky residuals on the floor. This will make it easier for the car to backflip.

The stunt can be broken down into 3 stages: 1) move forward, 2) flip, and 3) adjust direction & drive back. I used open loop control for all three steps. First, I accelerate the car as fast as possible towards the wall for a set amount of time, and then rapidly brake the car by reversing the wheels with the maximum PWM for a very brief second. The combine effects of displaced center of mass, sticky floor, and active braking caused the car to backflip. The following is the pseudo code of part of the program to achieve this.

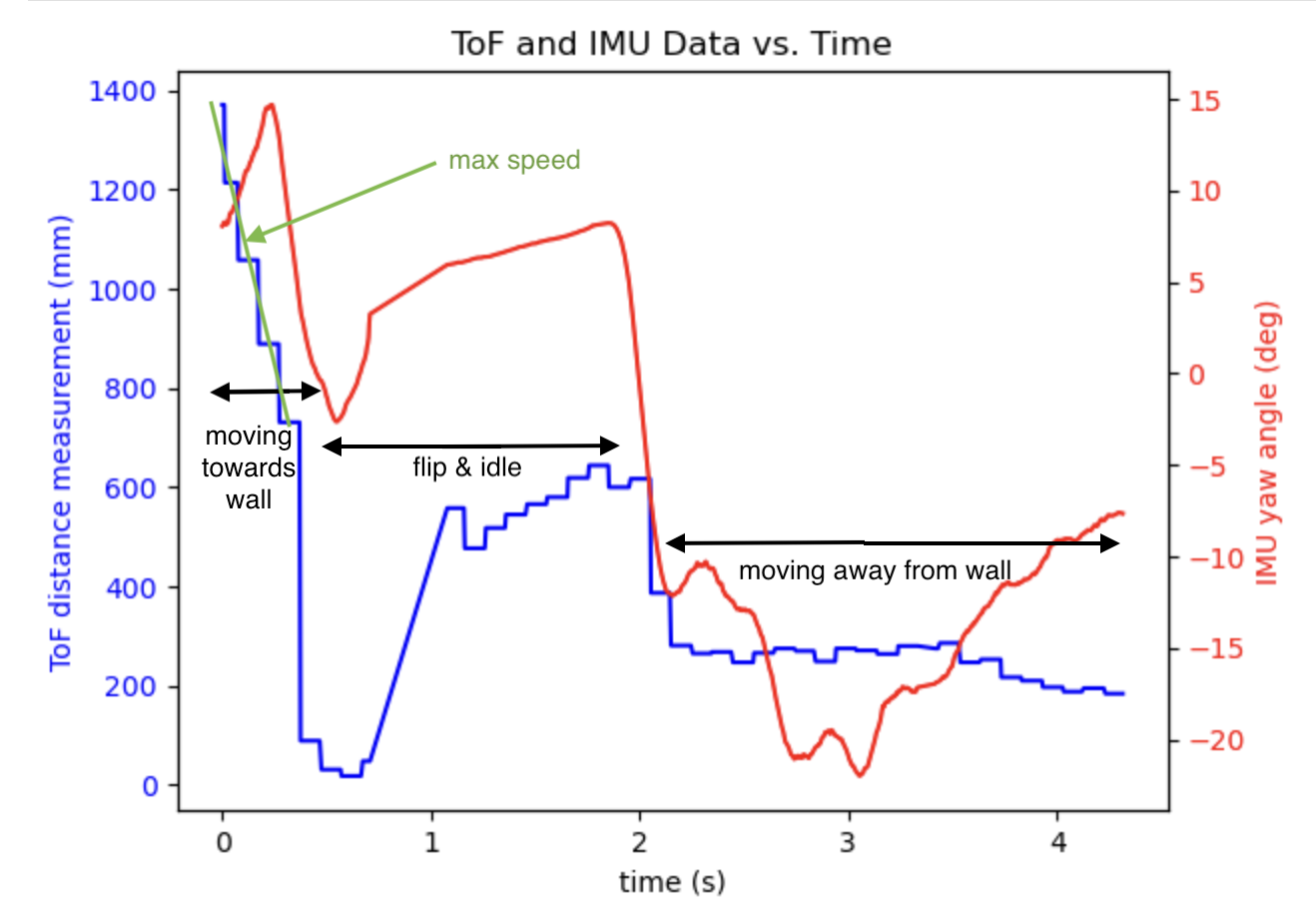

Data from one of the test runs is plotted below. The 3 stages are labeled in the plot. The entire test run took about 4.5 seconds (the first 0.3s of data is lost in this test run), and the maximum speed achieved can be calculated from the plot, which is about 3.6m/s. Note that when the car is moving away from the wall, the ToF sensor data is not trustworthy since the nearest obstacle is outside the measuring range of the sensor.

Below are videos showing repeated testruns of the stunt:

The quality of the map depends on whether the robot is able to accurately report its yaw angle while measuring the distance. To have a better control of the yaw, I implemented PID controller on the orientation control. The robot will rotate a set amount of degrees, stop to take measurement, and rotate again until it cover the entire 360 degrees.

The Controller works as expected. The rotation is slightly off-axis, as shown in the video below, and there is a drift about 15 degress per revolution. I applied a constant multiplier to account for the drift, and the corrected data is shown below.

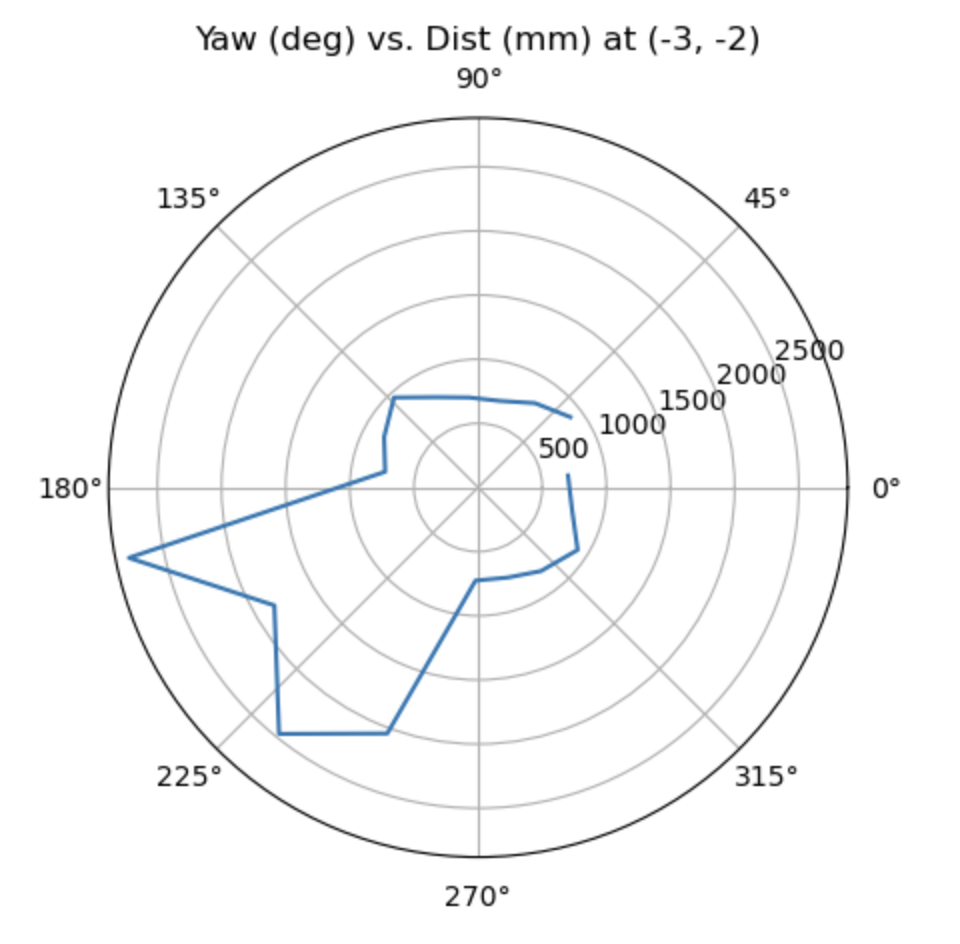

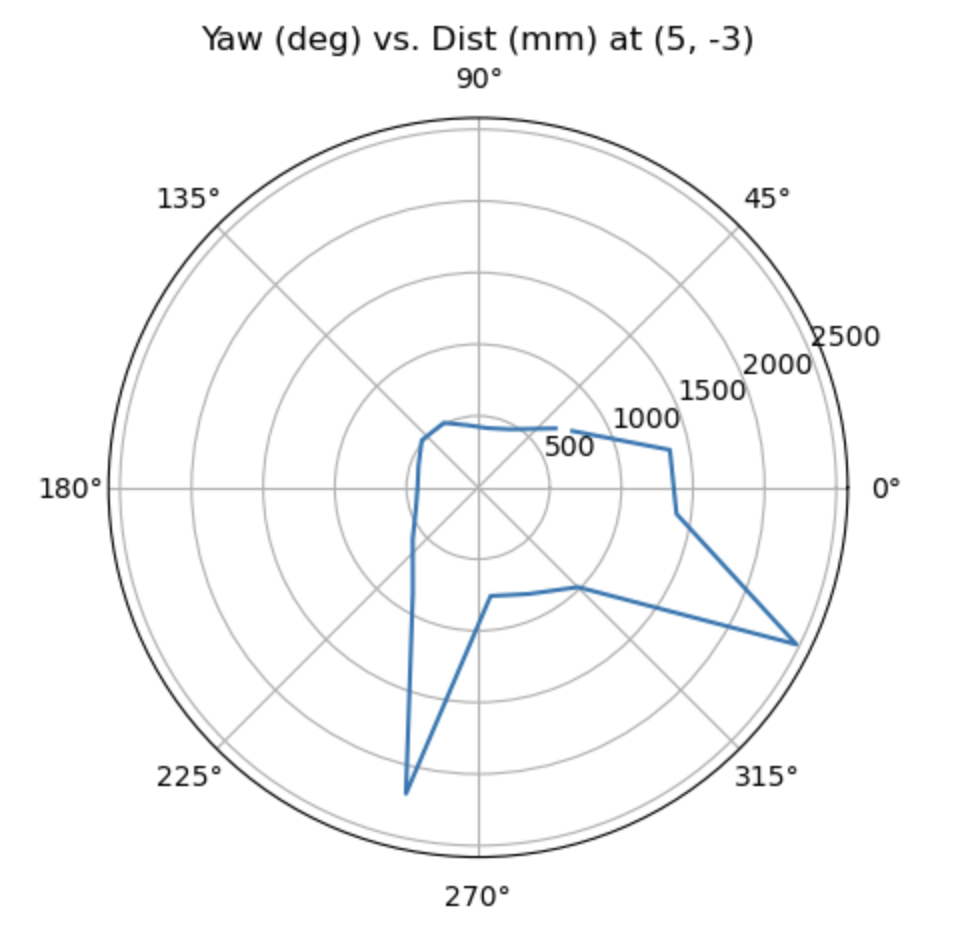

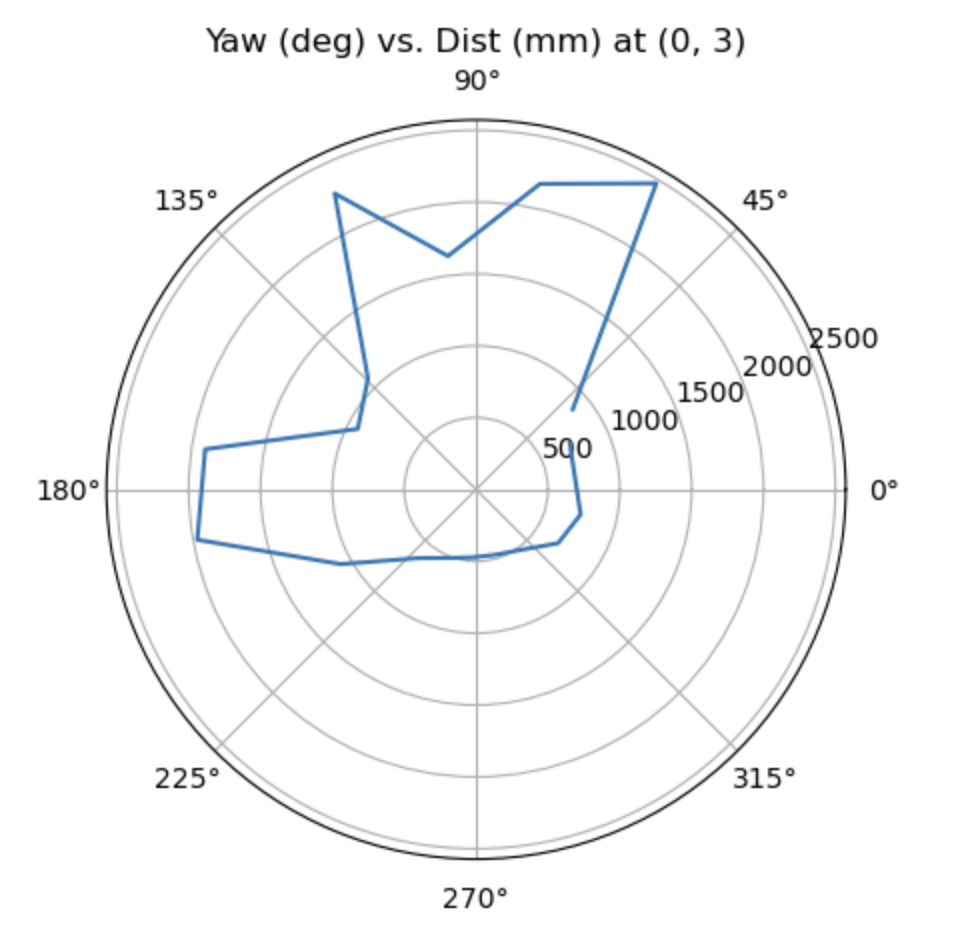

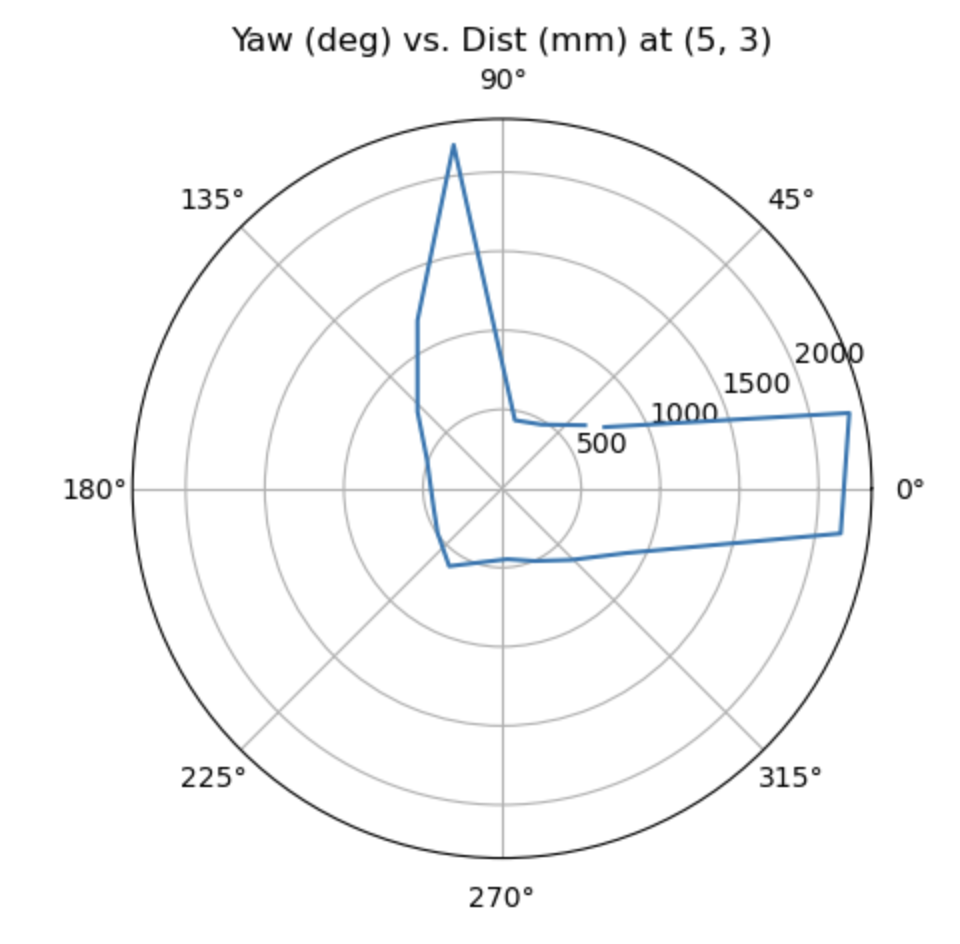

I placed the robot at each of the locations [(5,3), (0,3), (-3,-2), (5,-3)], did a full revolution, and collected the yaw and average distance data. The following plot show the yaw vs. distance for each of the locaitons in polar coordinates.

I performed the following transformation to the ToF sensor readings, where theta is the yaw angle, x and y are the coordinates of the robot location. The product of this transformation matrix with ToF data = [dist; 0; 1] results in the global coordinates of the walls.

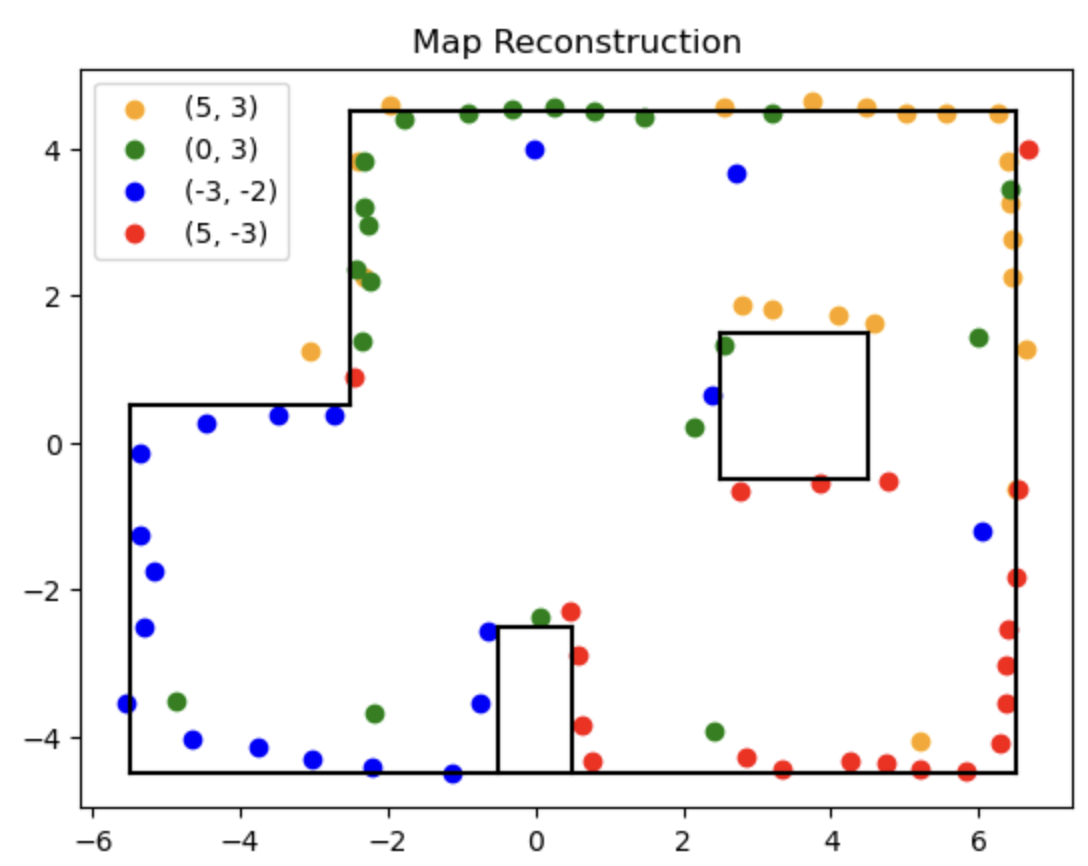

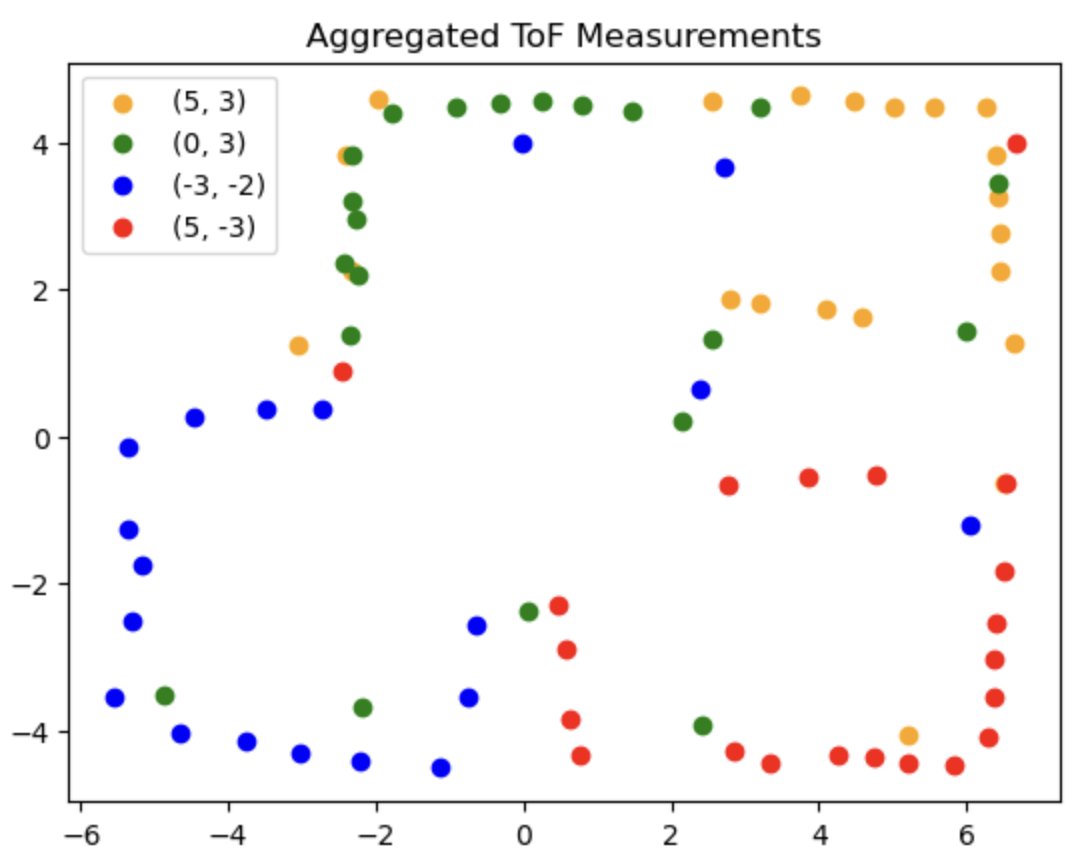

The following plot shows the aggregated data from four sets of ToF sensor measurements. In addition to the tranformation applied above, I had to manually adjust the angles by about 5 deg to align the readings. These misalignments are potentially due to drifts in IMU sensor readings or the initial misalignments when placing the robots.

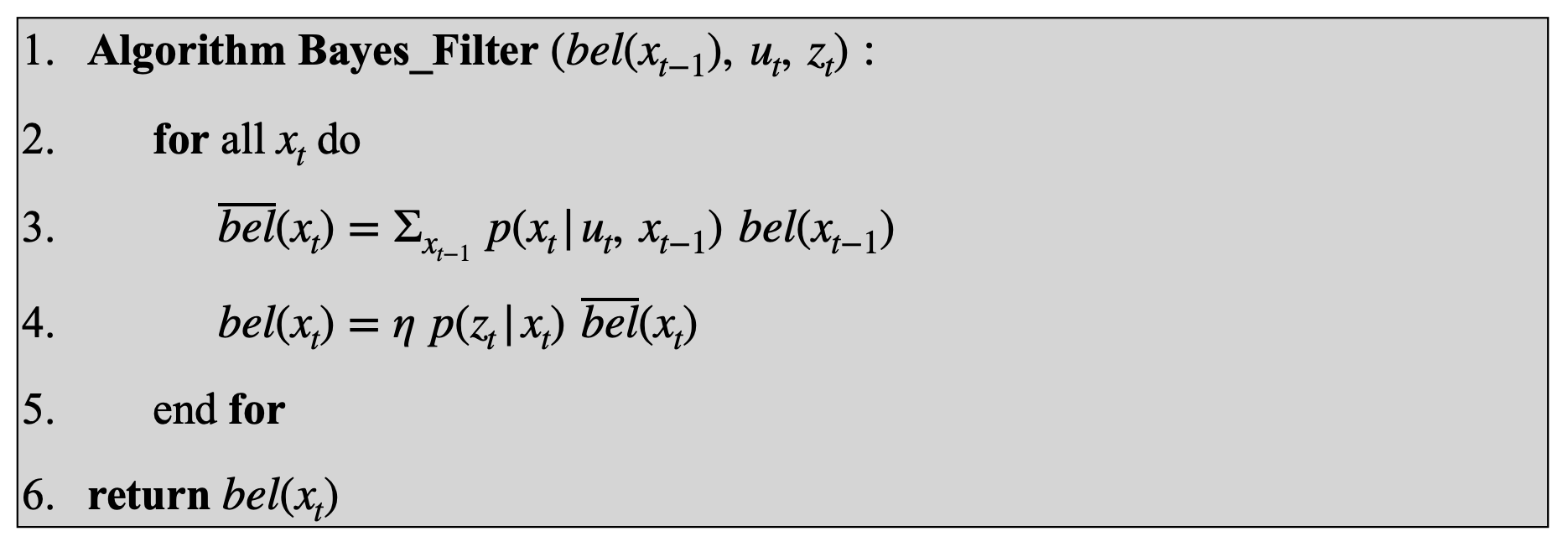

The Bayes Filter consists of two operations for each time step: prediction and update.

The Python code used in the lab is structured into several modules that implement the Bayes Filter:

The robot movement in one step in decomposed into initial rotation (delta_rot_1), translation (delta_trans), and final rotation (delta_rot_2). Function compute_control() calculates the robot's control inputs from the previous to current step in terms of rotational angles and transitional distances from the previous and current odometry poses. Both rotation angles are normalized to the range (-180°, 180°) to maintain consistency.

In this step, we want to find the probability that the robot ends up at a new position x' given its previous position x and the control input u. We first use the compute_control() from the previous step to extract the control inputs, and then calculate their probability using Gaussian distributions with the given standard deviation.

In this step, we loop through all the grids to calculate the probabliity of of the robot ending in that grid cell. To speed up the computation, we ignore any cells with probablity less than 0.0001.

In this step, we use an array of observations and calculate the probabilities of each of them given the current state.

In this step, we take in the sensor data, combine it with previously calcuated bel_bar to update the believe.

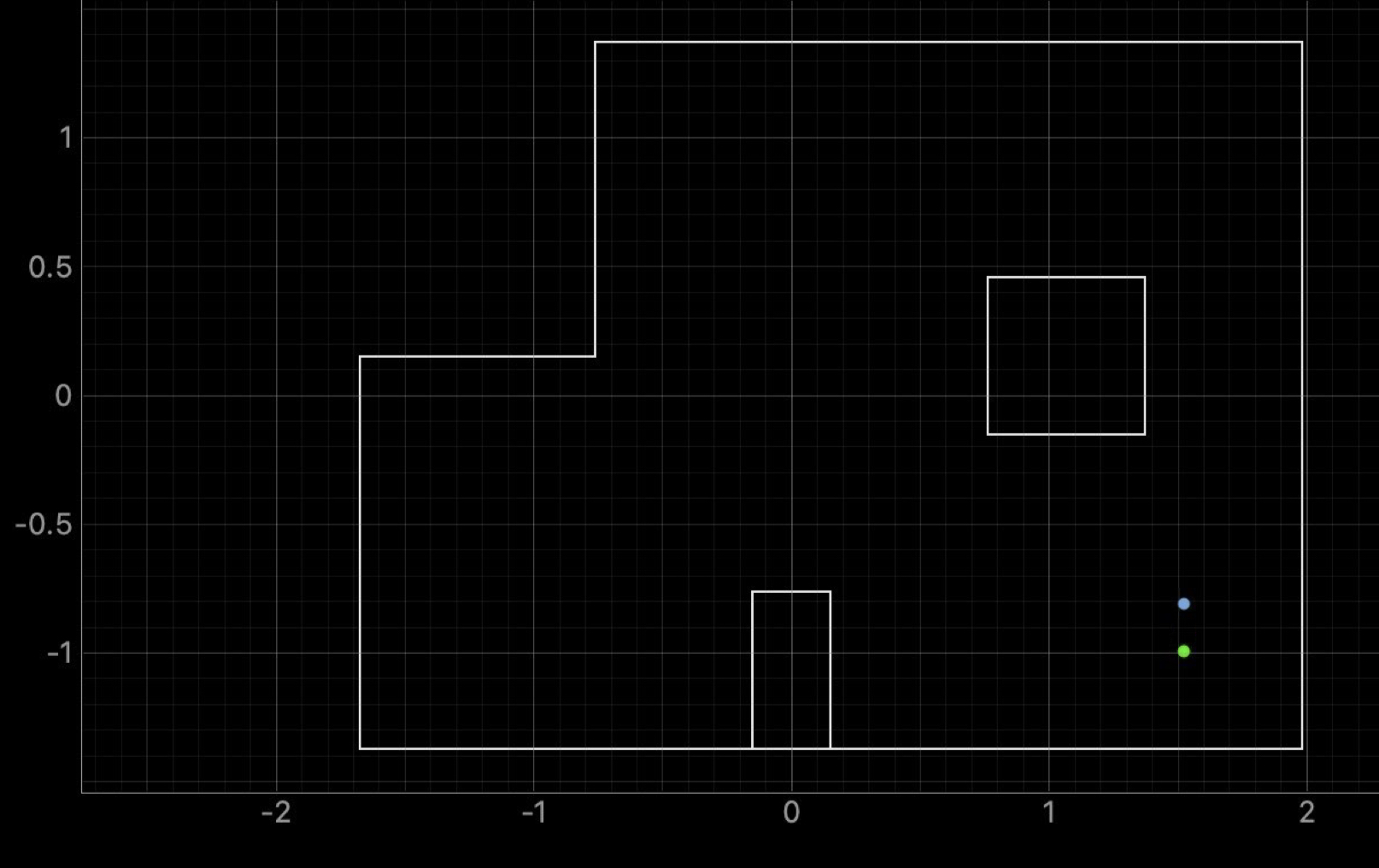

Below shows the robot running in the simulator. Even with low accuracy in the odometry data (red), the predicted trajectory follows the real trajectory closly.

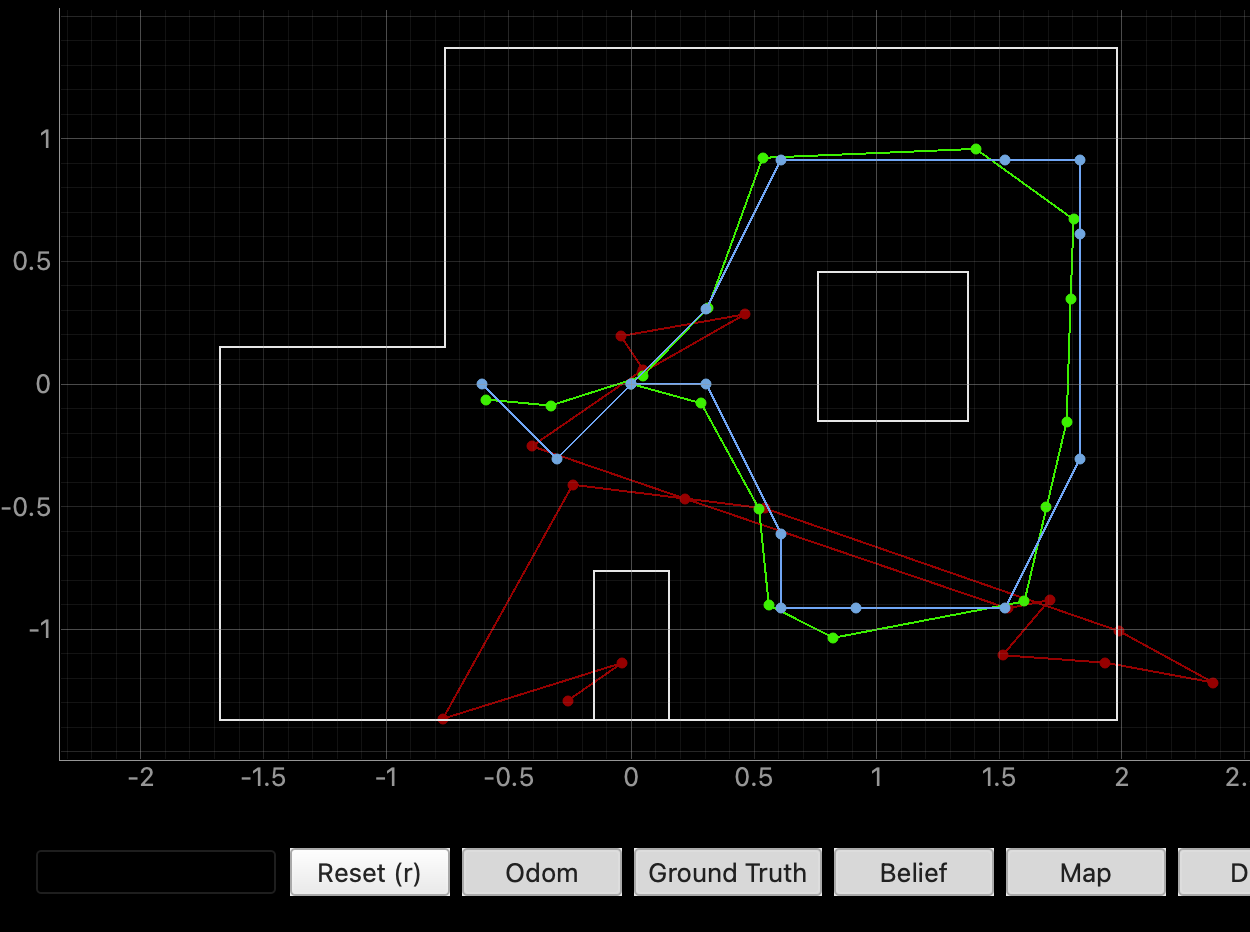

The Bayes Filter in simulation, where red is odometry, green and blue are the ground truth pose and the expected pose, respectively:

Here we are only performing the update step of the Bayes Filter, which is implemented as perform_observation_loop(). At each of the 4 pre-determined locations of in the map, the robot does a 360 deg rotation in increments of 20 deg, and take 18 ToF sensor measurements for reach incremental rotations, similar to what was done in Lab 9. Here I used asyncio.run(asyncio.sleep(30)) to sleep for 30 seconds while waiting for the rotation sequence to execute and for ble to return the data.

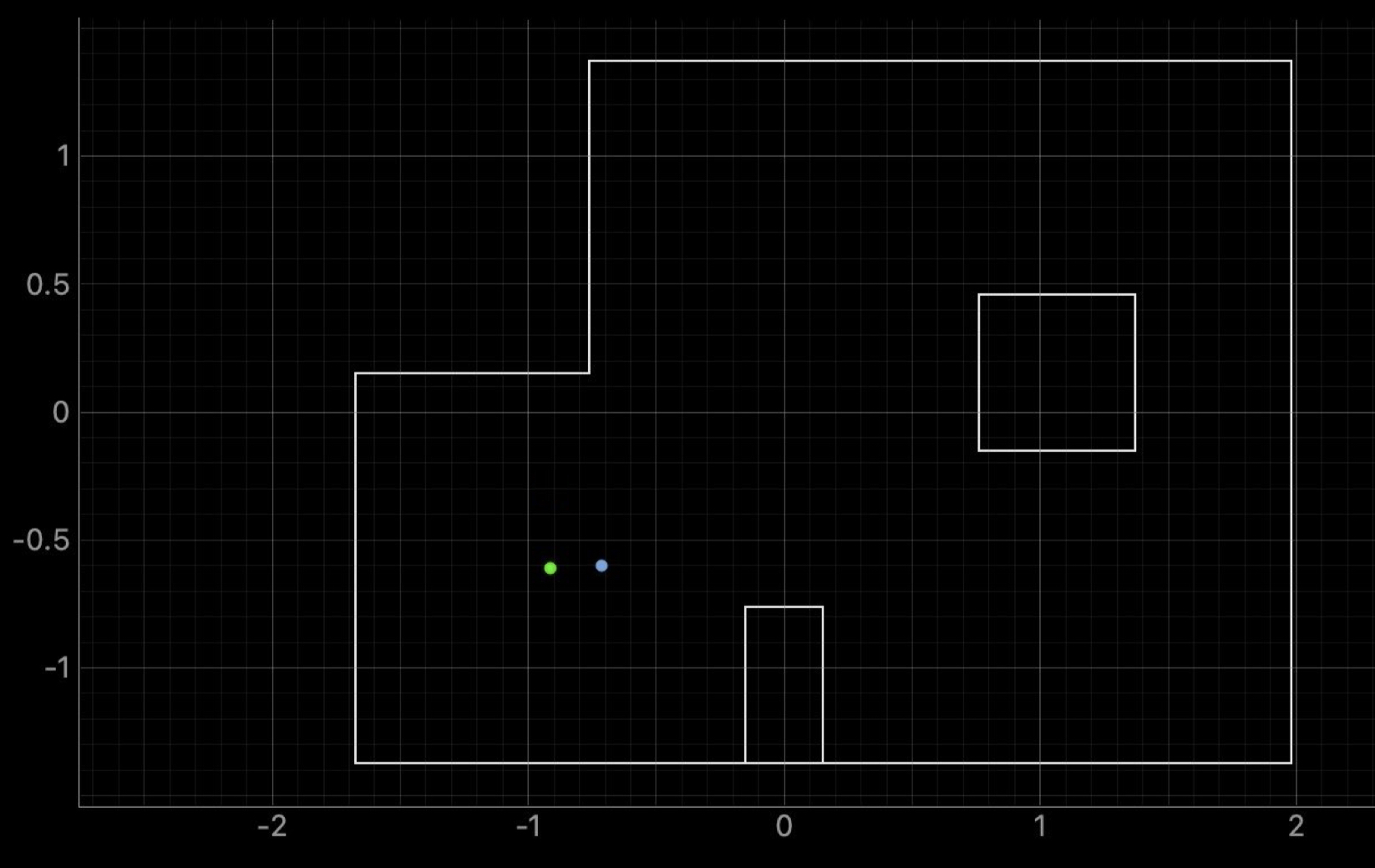

The results from Bayes Filter (blue) were decently close to the real pose of the robot (green). Two sources of error I had to tune for during the lab where the robot 1) drifting and 2) over- or under-turning, but overall the robot is able to determine its location through one step of update with Bayes Filter.

Location 1:

Location 2:

Location 3:

Location 4:

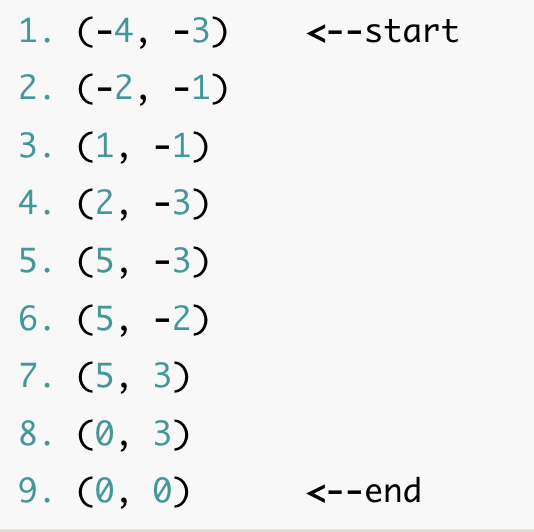

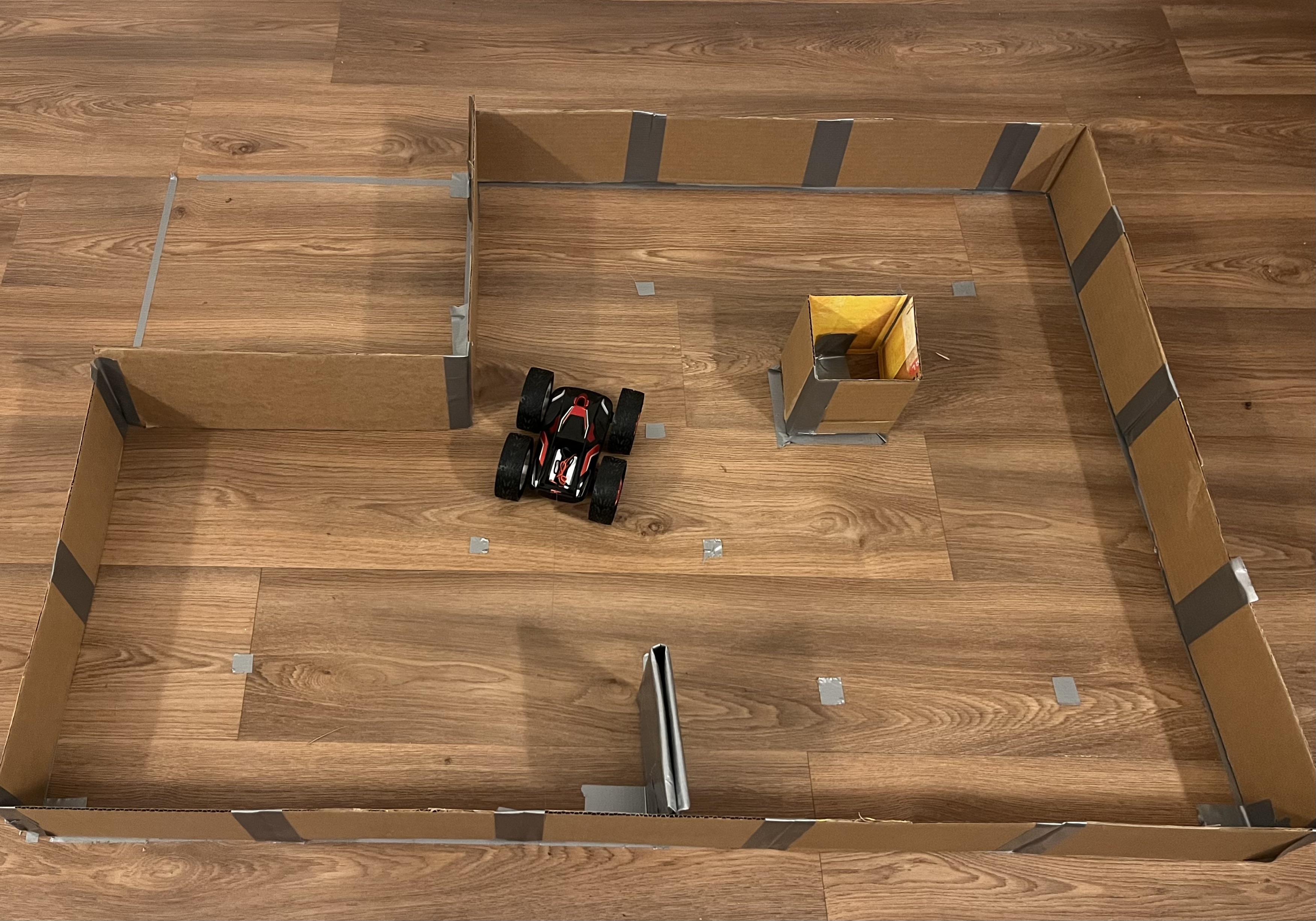

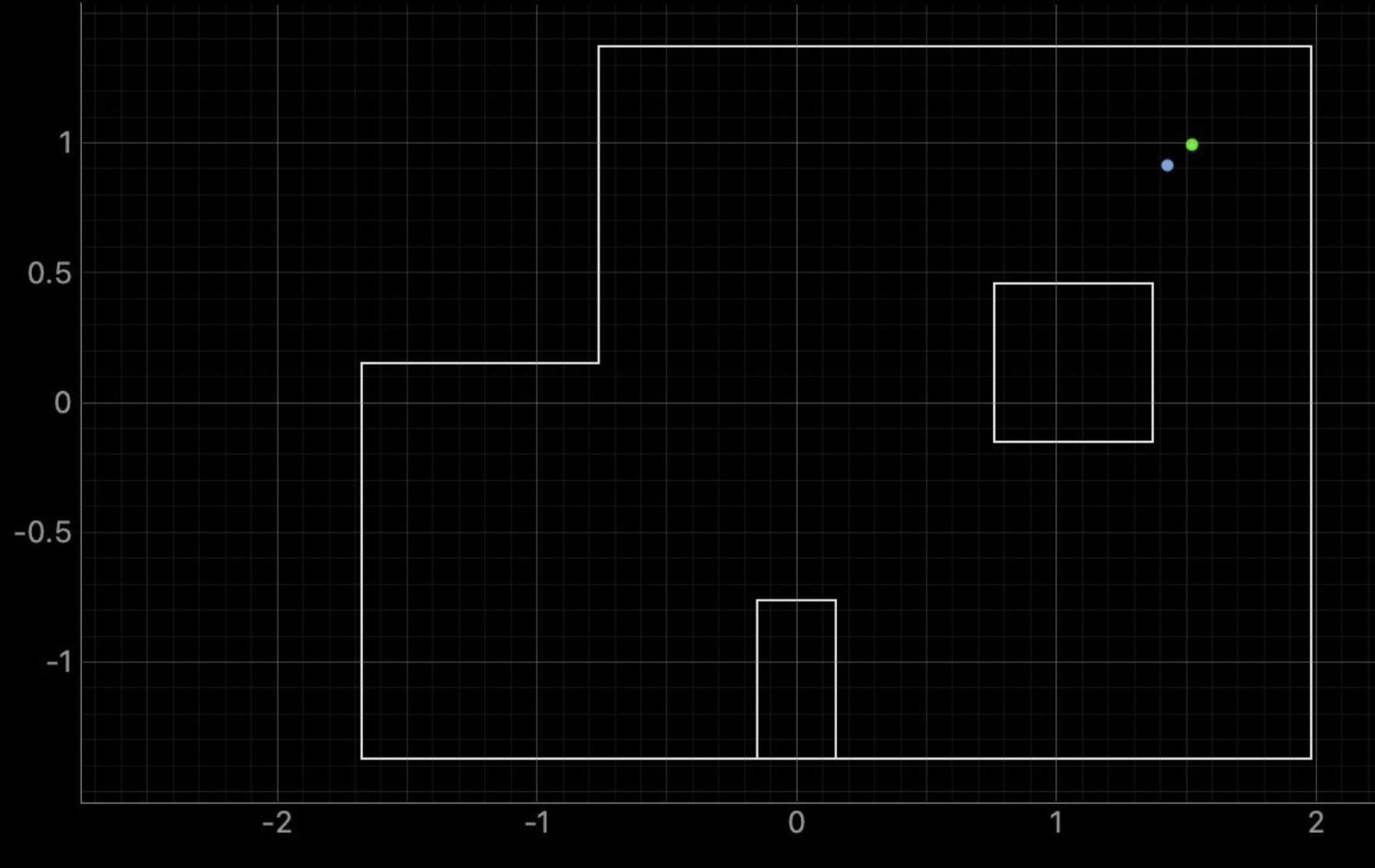

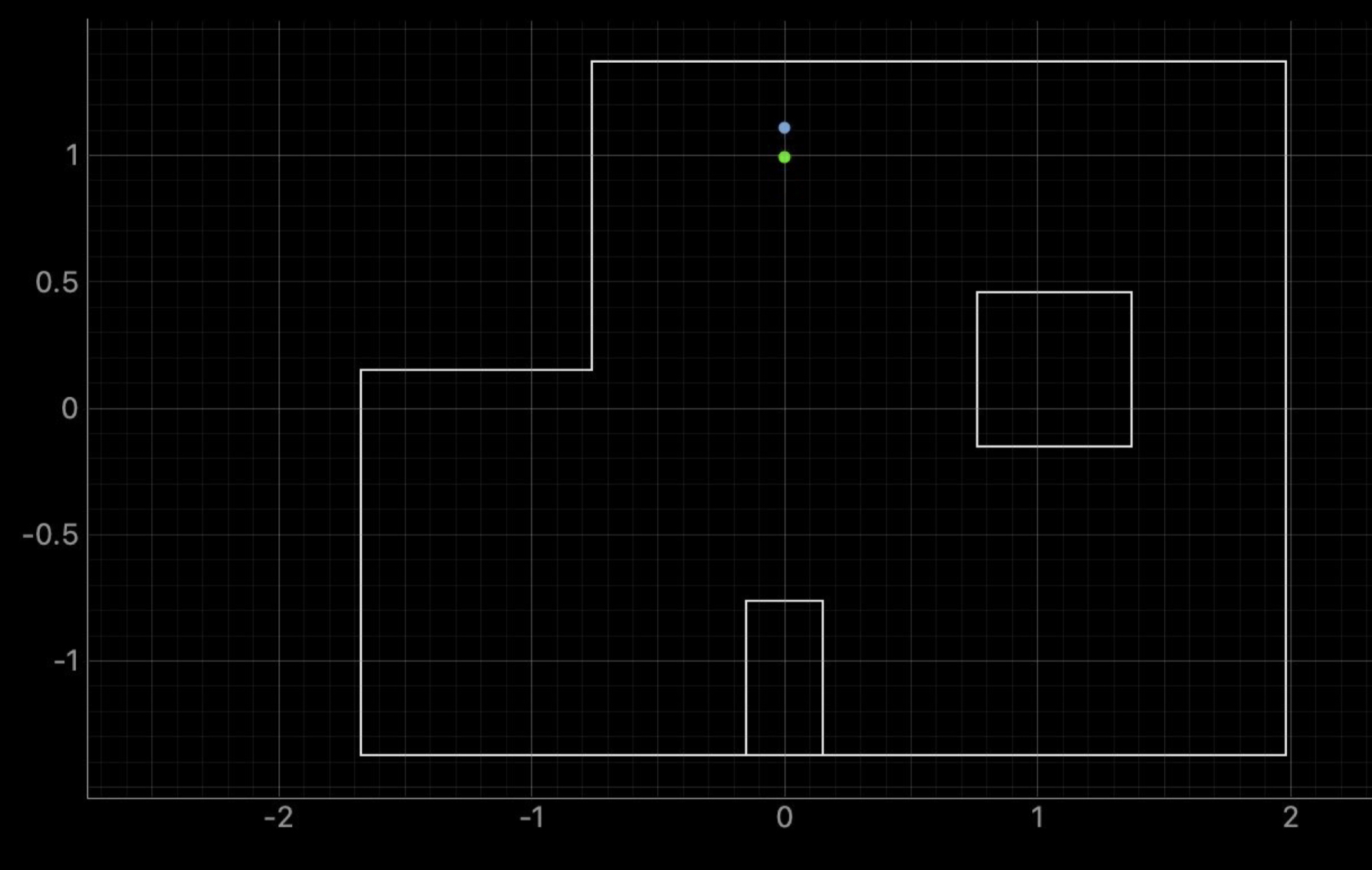

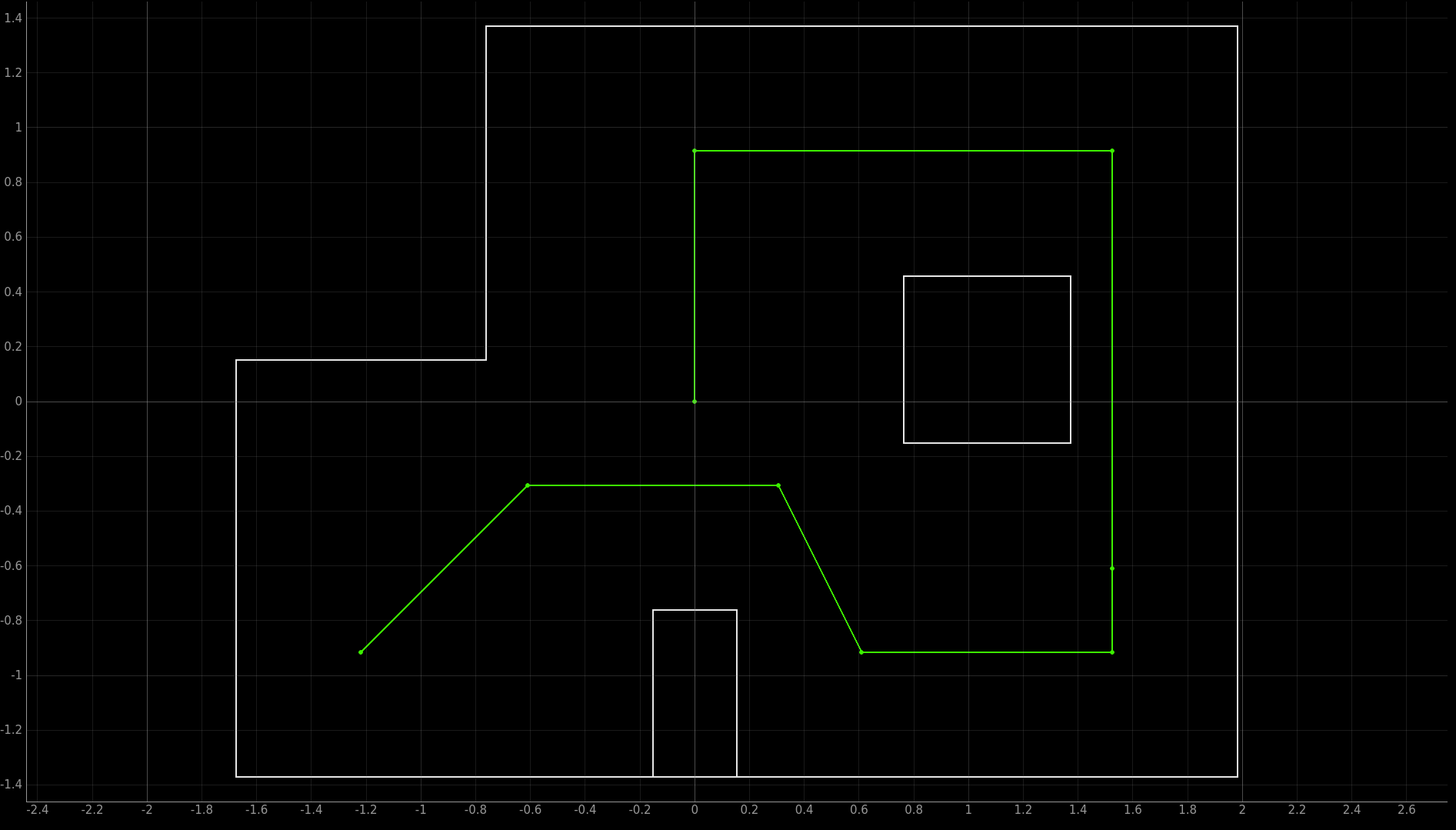

The map environment and the waypoint coordinates are shown below.

Since I was not able to stay on campus, I set up a 3:1 scaled down map in my room to recreate the lab environment:

I initially implemented PID control for both linear translation and rotation. However, the ToF sensor didn't perform well when detecting small distances in my map. To address this, I switched to open-loop control for linear movement while keeping PID control for rotation. To make navigation smoother and more efficient, I integrated the turning and forward motion into a single control loop. As the robot moves toward the next waypoint, the PID controller adjusts the orientation by introducing a differential to the forward drive, allowing for continuous motion rather than separate stop-and-turn steps.

The result is shown in the video below. The robot is able to complete the task fast but the accuracy can be improved.
